VMC850 / VMC855 / VMC1160 – BT40
Fully Enclosed CNC Vertical Machining Center
VMC Series – Vertical Machining Centers
European-Level Precision. Industrial Structure. Modular Configuration.
The VMC850 / VMC855 / VMC1160 Series is engineered for mechanical workshops, industrial manufacturers, and precision component producers requiring:
-
High structural rigidity
-
Stable long-term accuracy
-
Continuous production reliability
-
European-compliant configuration
Suitable for machining:
-
Aluminum
-
Alloy steel
-
Hardened steel
-
Cast iron
-
Automotive components
-
Mold and die applications
-
General industrial parts
Structural Design & Construction
✔ High-rigidity cast iron base
✔ Three-axis linear guideways
✔ Precision-grade ball screws (Taiwan origin)
✔ Fully enclosed protection structure
✔ Reinforced T-slot working table
The machine frame is designed to minimize vibration, thermal distortion, and structural deformation during heavy-duty operation.
Precision & Performance
-
Positioning accuracy: ±0.005 mm / 300 mm
-
Repeatability: ±0.003 mm
-
Reference standard: VDI3441
-
Renishaw inspection report available upon request
The VMC855 PrecisionLine is optimized for tight-tolerance machining and high-accuracy applications.
Spindle System
-
Taper: BT40
-
Standard speed: 8000 rpm
-
Optional speeds: 10000 / 12000 rpm
-
Transmission: Belt-driven or Direct Drive
-
Motor power: 7.5 kW
-
Optional spindle oil cooling system
Designed for stable performance under prolonged high-load machining conditions.
CNC System (Configurable)
Compatible with:
-
FANUC
-
Siemens
-
Mitsubishi
-
Syntec
-
GSK
Multilingual interface available (English supported).
European configuration available upon request.
Tool Magazine
-
16 / 20 / 24 tools (arm type)
-
Optional 12-tool carousel type
-
Maximum tool weight: 8 kg
-
Maximum tool length: 300 mm
Fast tool-changing system to increase production efficiency.
Centralized Lubrication System
-
Automatic cycle adjustment
-
Fluid level monitoring
-
ISO9001-compliant system
Ensures long-term mechanical reliability.
Certifications & Compliance
✔ CE Certification
✔ ISO9001
✔ SGS
✔ TUV (EU configuration available)
Ready for European market export.
Optional Configurations
-
4th axis
-
5th axis
-
Spindle oil cooling
-
Chip conveyor (chain or screw type)
-
Oil mist collector
-
Workpiece measuring probe
-
Tool setting probe
-
Automatic door system
-
Through-spindle coolant
Full customization available depending on industrial requirements.
Main Technical Specifications (Reference Model: VMC850)
| Parameter | VMC850 |
|---|---|
| Table Size | 1000 × 500 mm |
| X Travel | 800 mm |
| Y Travel | 500 mm |
| Z Travel | 500 mm |
| Table Load Capacity | 400 kg |
| Rapid Traverse Speed | 18 m/min |
| Cutting Feed Rate | 10 m/min |
| Machine Dimensions | 2600 × 2000 × 2200 mm |
(VMC855 and VMC1160 models feature extended axis travels. Detailed technical sheets available upon request.)
Why Choose the VMC Series
✔ Competitive pricing compared to European equivalents
✔ Taiwan & Japan core components
✔ High structural rigidity
✔ Modular configuration
✔ Export-ready support
Model Positioning Overview

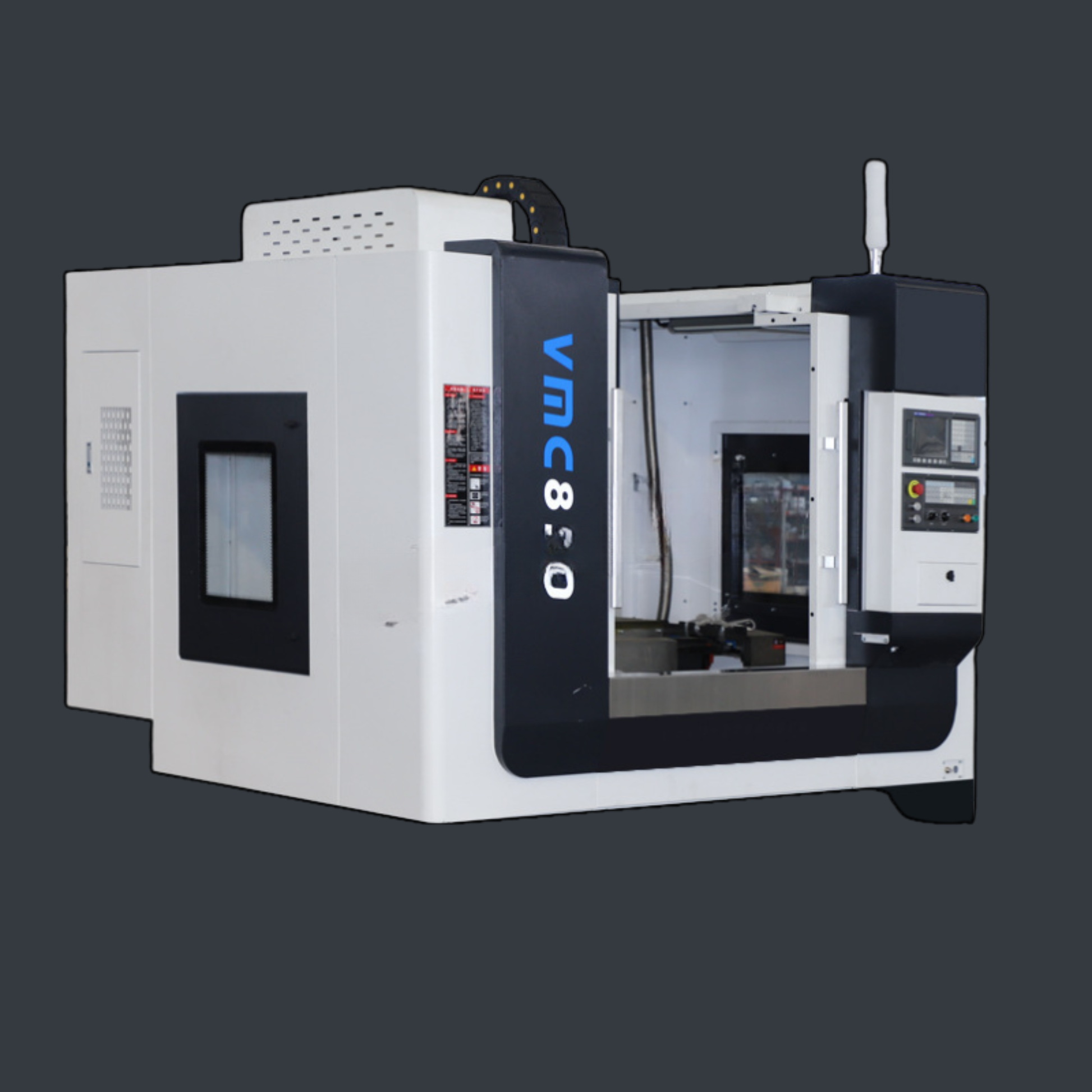

VMC850 ProShield
Compact industrial solution ideal for small-to-medium workshops and standard production.

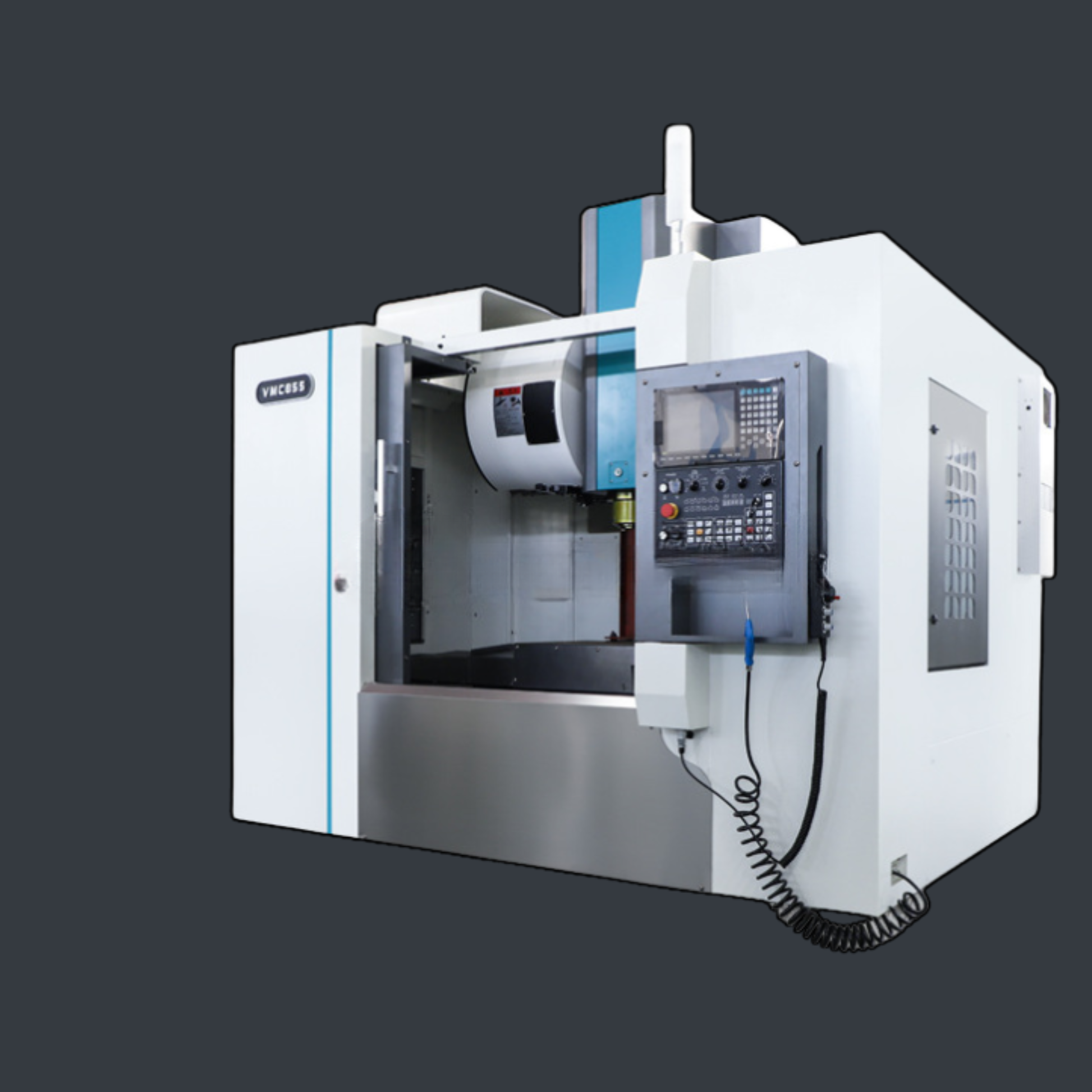

VMC855 PrecisionLine
Optimized for precision machining and tight-tolerance applications.

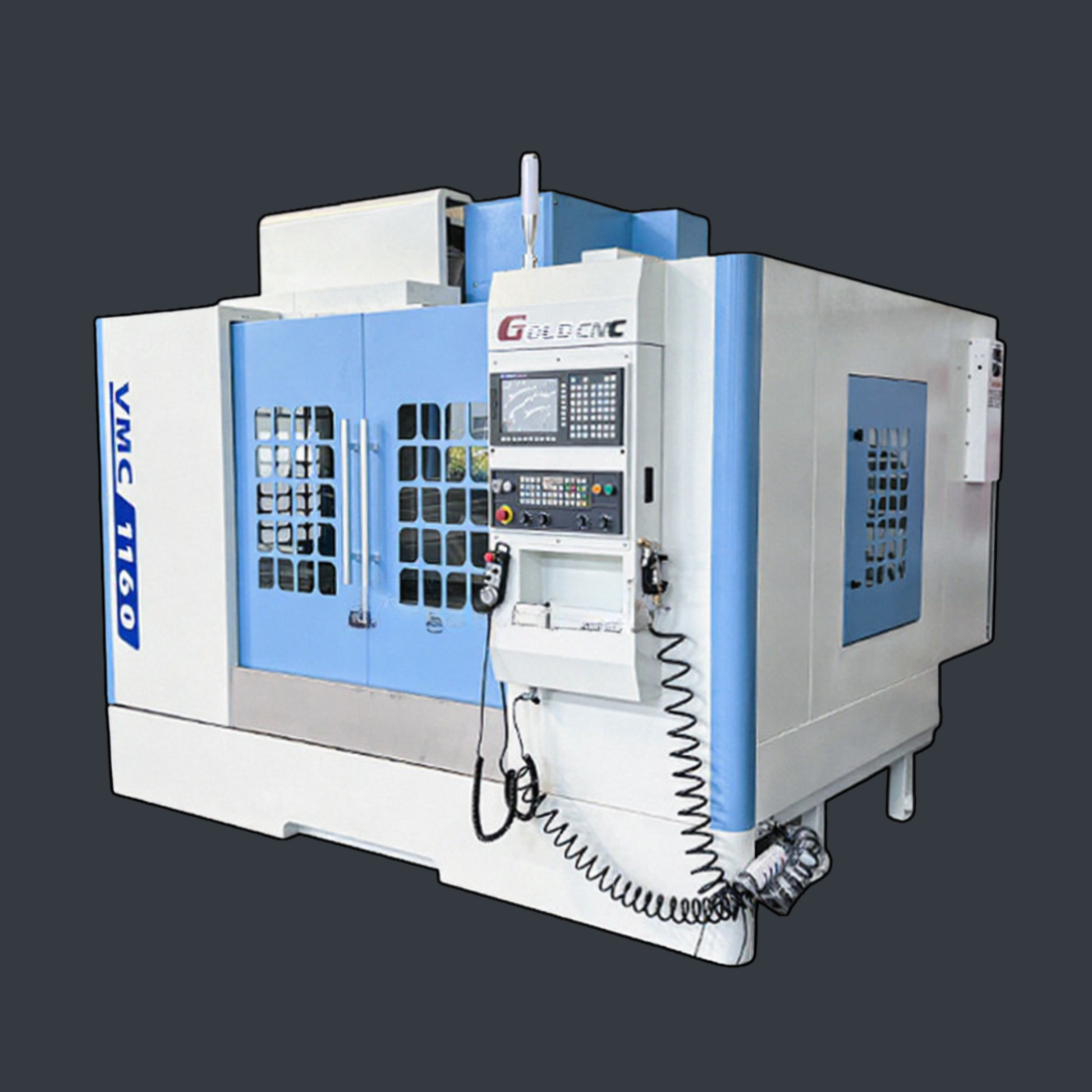

VMC1160 PowerMax
Extended travel, heavier structure, ideal for large components and continuous industrial production.
