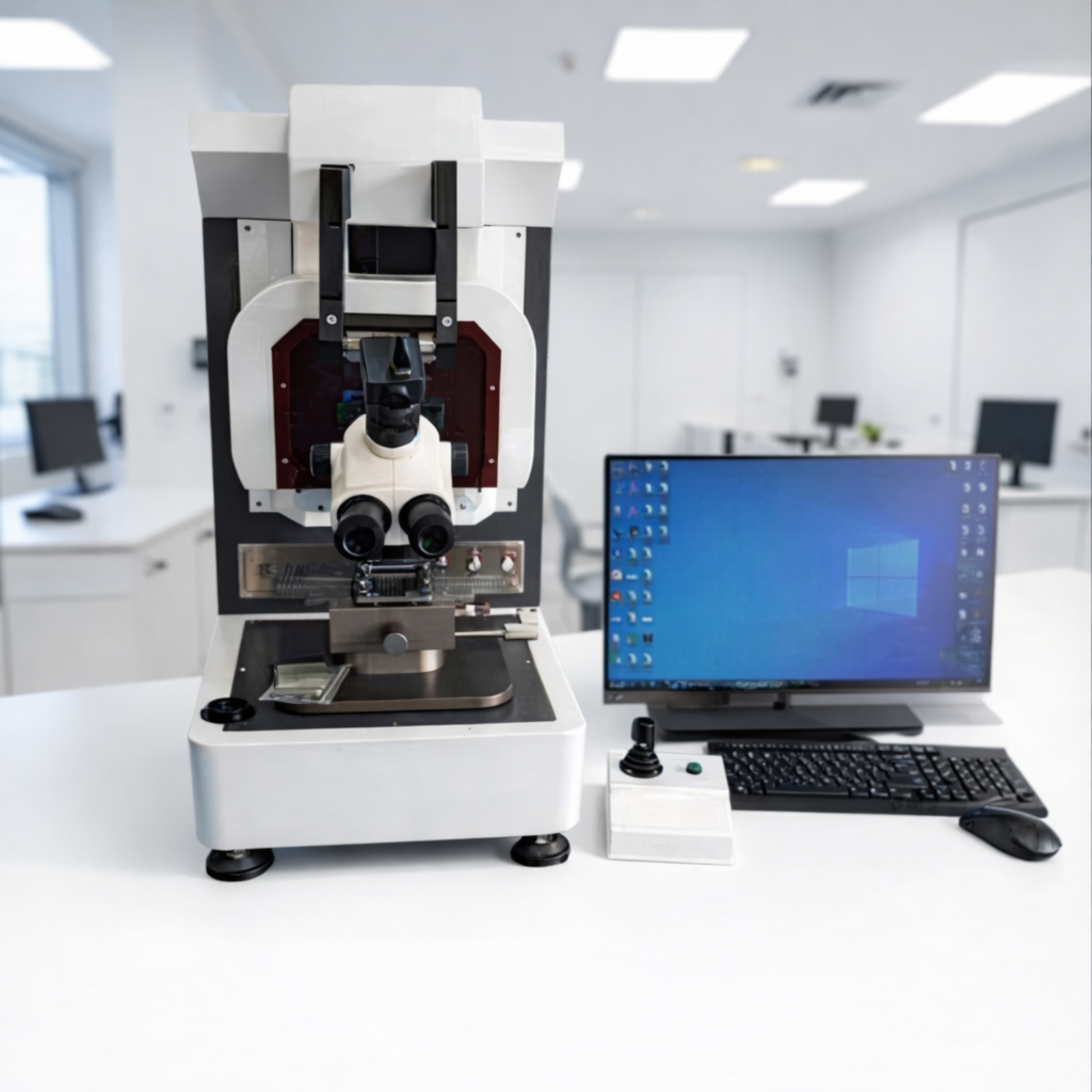

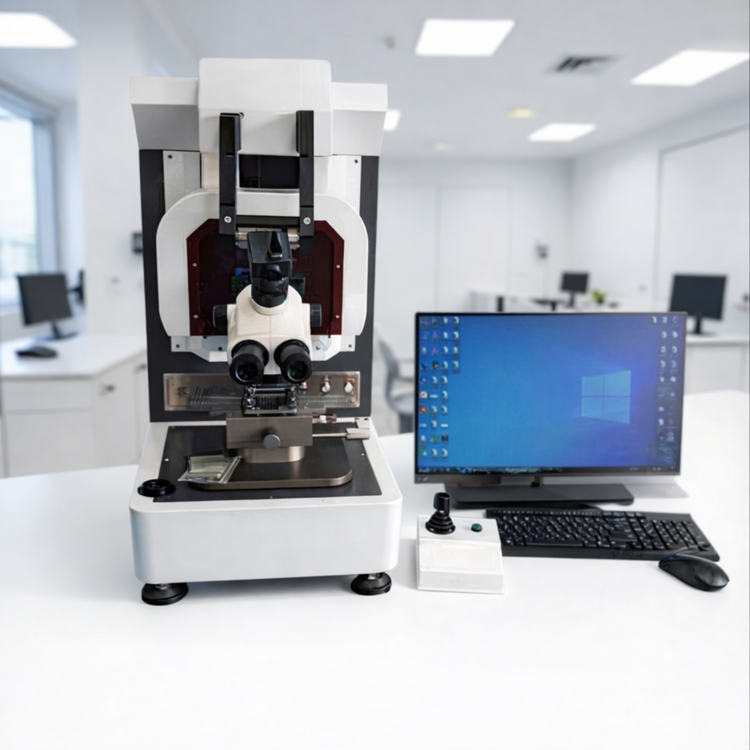

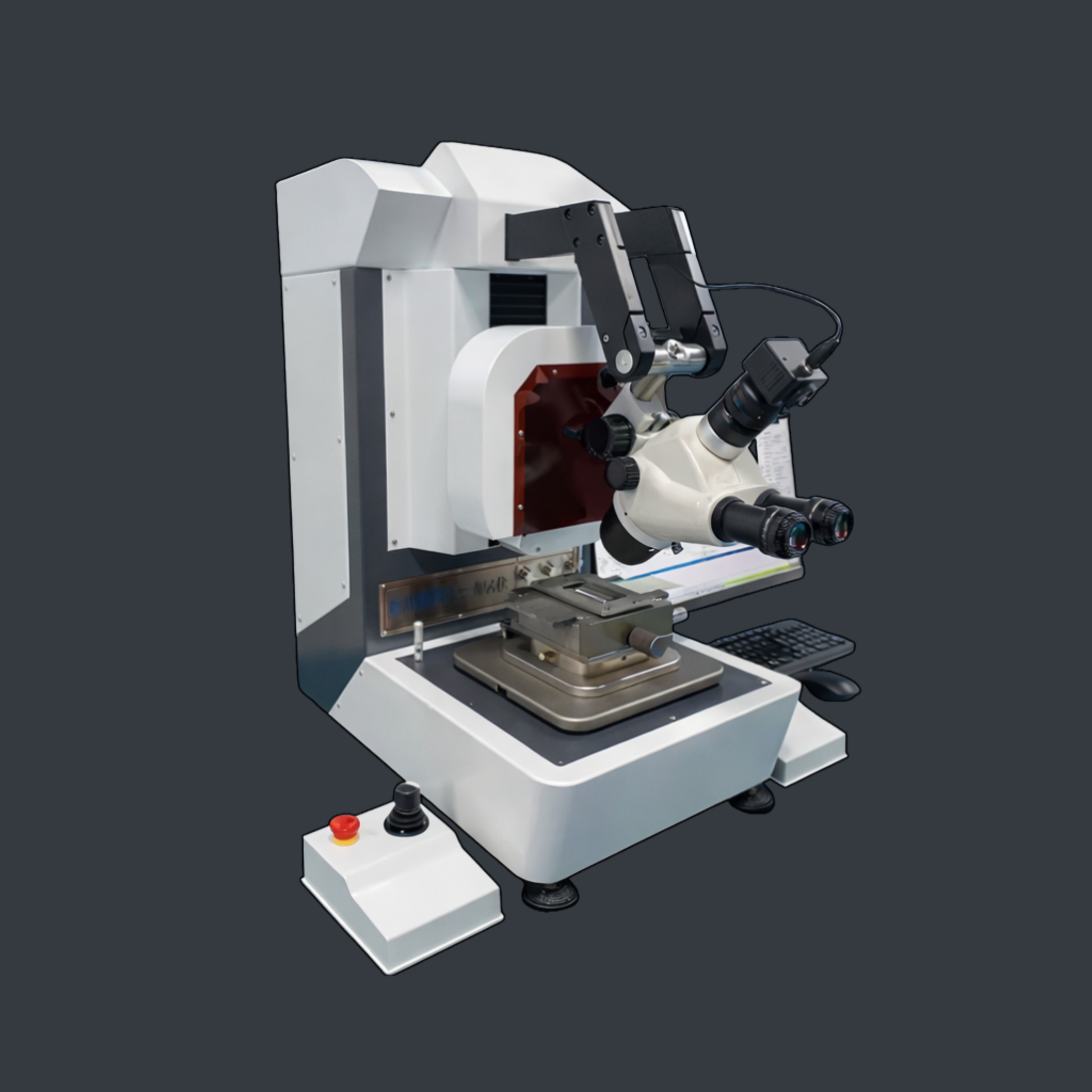

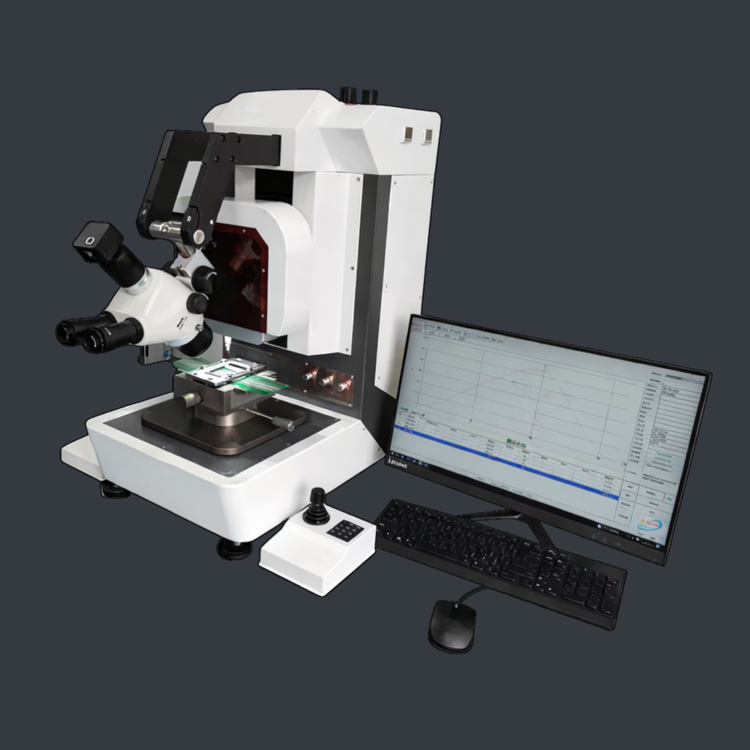

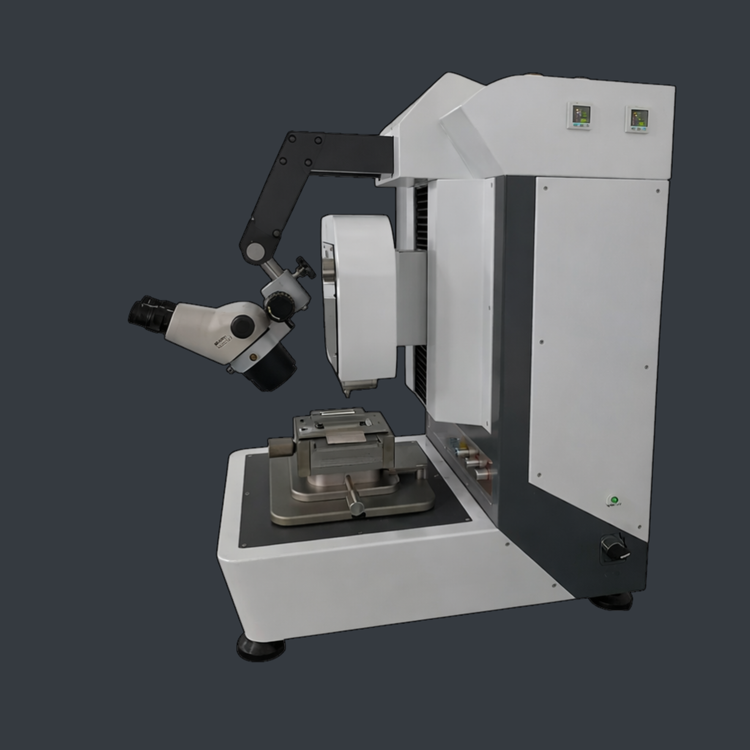

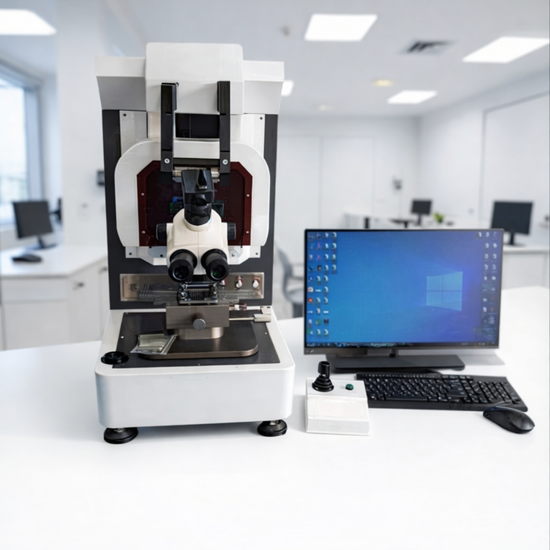

TTEST4000 Semiconductor Shear Force Tester
Industrial Index operates as an import and sourcing coordination service.
Please use the form below to request technical details and a tailored quotation based on your requirements.
────
Description
More
Less
TEST4000 High-Precision Semiconductor Push & Pull Shear Force Testing Machine – CNAS Calibrated
• High-precision force testing machine for semiconductor and microelectronic components
• Designed for welding wire pull testing and shear force testing
• Suitable for IC packaging, LED testing, PCB bonding and microelectronic assemblies
• CNAS calibration available
• Lifetime dimensional stability design
Testing Capabilities
• Wire pull test (bond wire pull strength)
• Shear force test (die shear, solder shear)
• Push force test
• Pressure test modes selectable via software
• Multiple interchangeable sensor modules
Accuracy & Performance
• Comprehensive testing accuracy up to ±0.1% (depending on module)
• National standard compliance ±0.25%
• High stability load sensors
• Real-time force curve monitoring
• Data export and storage capability
Motion System
• X-axis effective stroke: 80mm – resolution ±2µm
• Y-axis effective stroke: 80mm – resolution ±2µm
• Z-axis effective stroke: 80mm – resolution ±1µm
• Four-axis motion platform
• Precision transmission components for long-term stability
• 360° rotating fixture platform
Control & Software
• Integrated industrial PC with Windows operating system
• User-friendly testing software interface
• Displays up to 10 sets of test data simultaneously
• Real-time value distribution curve visualization
• Data saving and exporting functions
Mechanical & Electrical Specifications
• Power supply: 220V ±5%
• Power consumption: 300W (max)
• Machine dimensions: 600 × 480 × 720 mm
• Dual joystick control system
• Emergency stop function
Applications
• Semiconductor manufacturing plants
• IC packaging facilities
• Microelectronics R&D laboratories
• LED production lines
• Quality control laboratories
• CNAS-accredited testing centers
Advantages
• High precision micro-force measurement
• Modular sensor configuration
• Stable long-term calibration performance
• Customizable test modules
• Suitable for automated production environments
