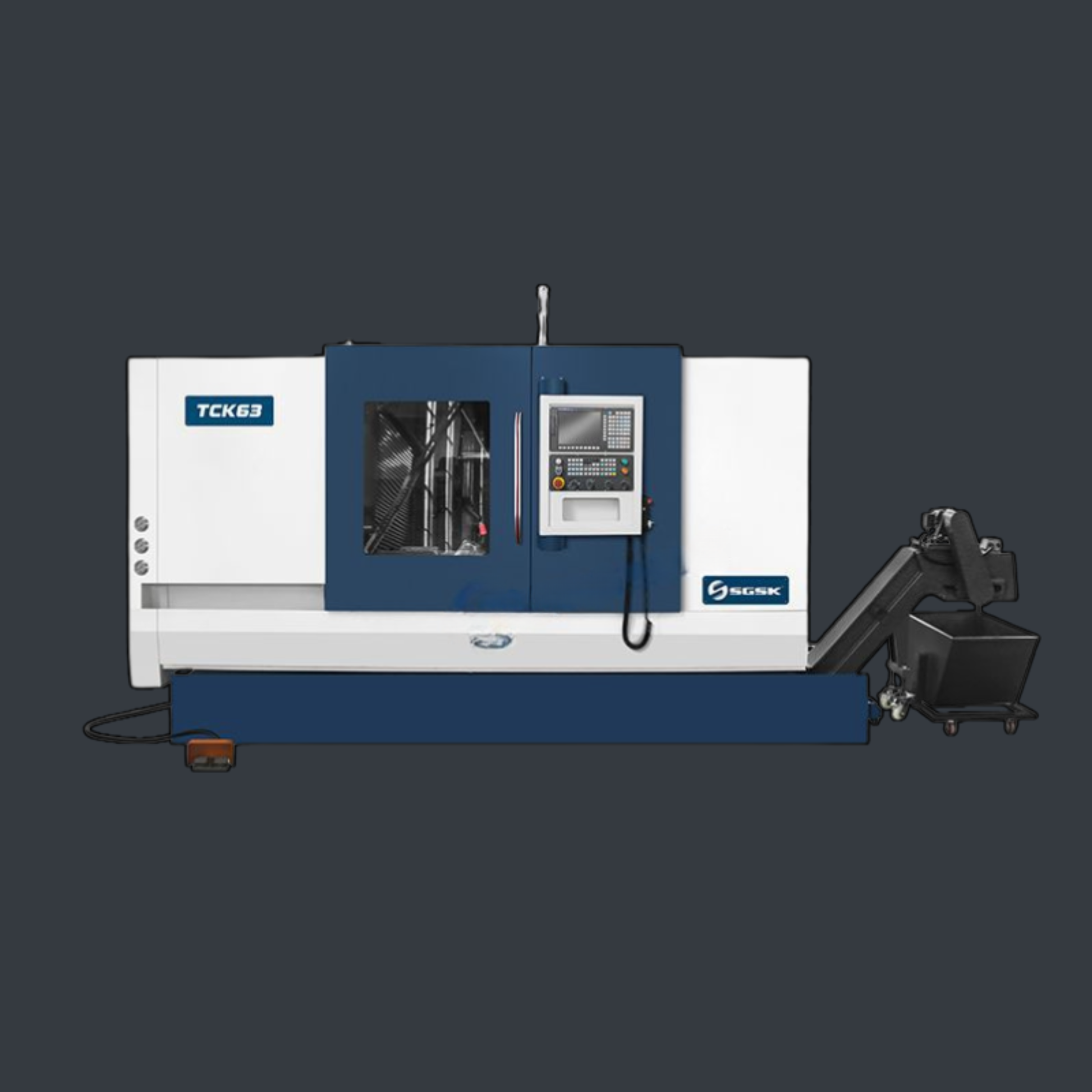

TCK63 CNC Slant Bed Lathe

TCK63 Heavy-Duty Inclined Bed CNC Lathe

High-Precision Slant Bed Turning Center

Overview

The TCK63 Heavy-Duty Inclined Bed CNC Lathe is a high-rigidity slant bed turning center engineered for precision machining, heavy cutting operations and automated industrial production.

Designed with a 45° inclined bed structure, hardened guideways and high-torque spindle unit, the TCK63 ensures stability, efficiency and long-term machining reliability.

Structural Design

• 45° inclined bed structure for optimal chip evacuation

• Heavy-duty cast iron base for vibration absorption

• Reinforced machine frame for high rigidity

• Hard guideways with high-frequency quenching (HRC52 hardness)

• Designed for continuous industrial operation

Spindle Unit

• High-speed precision spindle

• Integrated hydraulic chuck system

• Strong torque output for heavy cutting

• Stable performance under high load

• Optimized for steel, alloy materials and large-diameter workpieces

Turret System

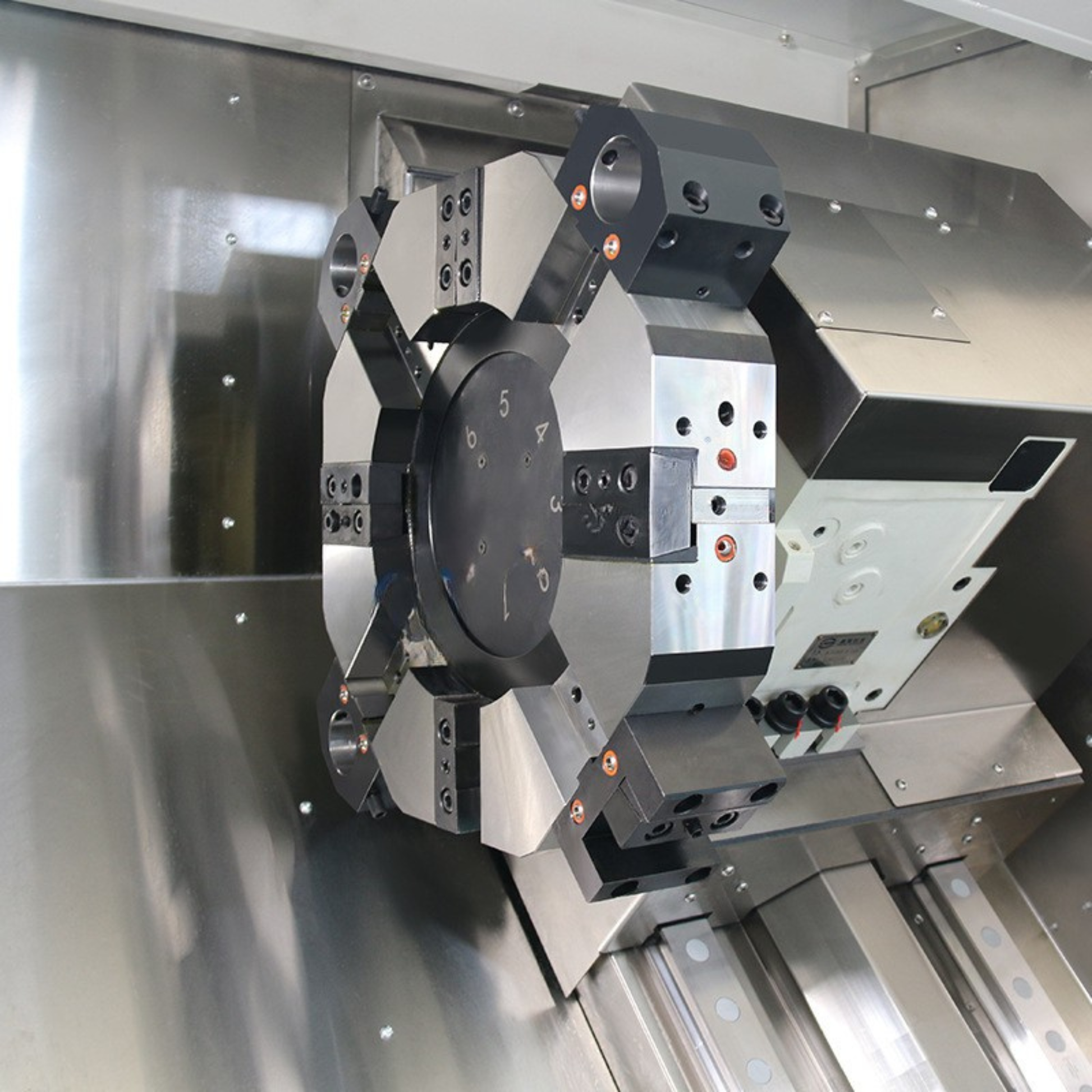

• Standard 12-position servo turret

• Fast indexing and high positioning accuracy

• Stable tool clamping system

• Optional power turret configuration

• Optional Y-axis configuration (upon request)

Chuck & Workholding

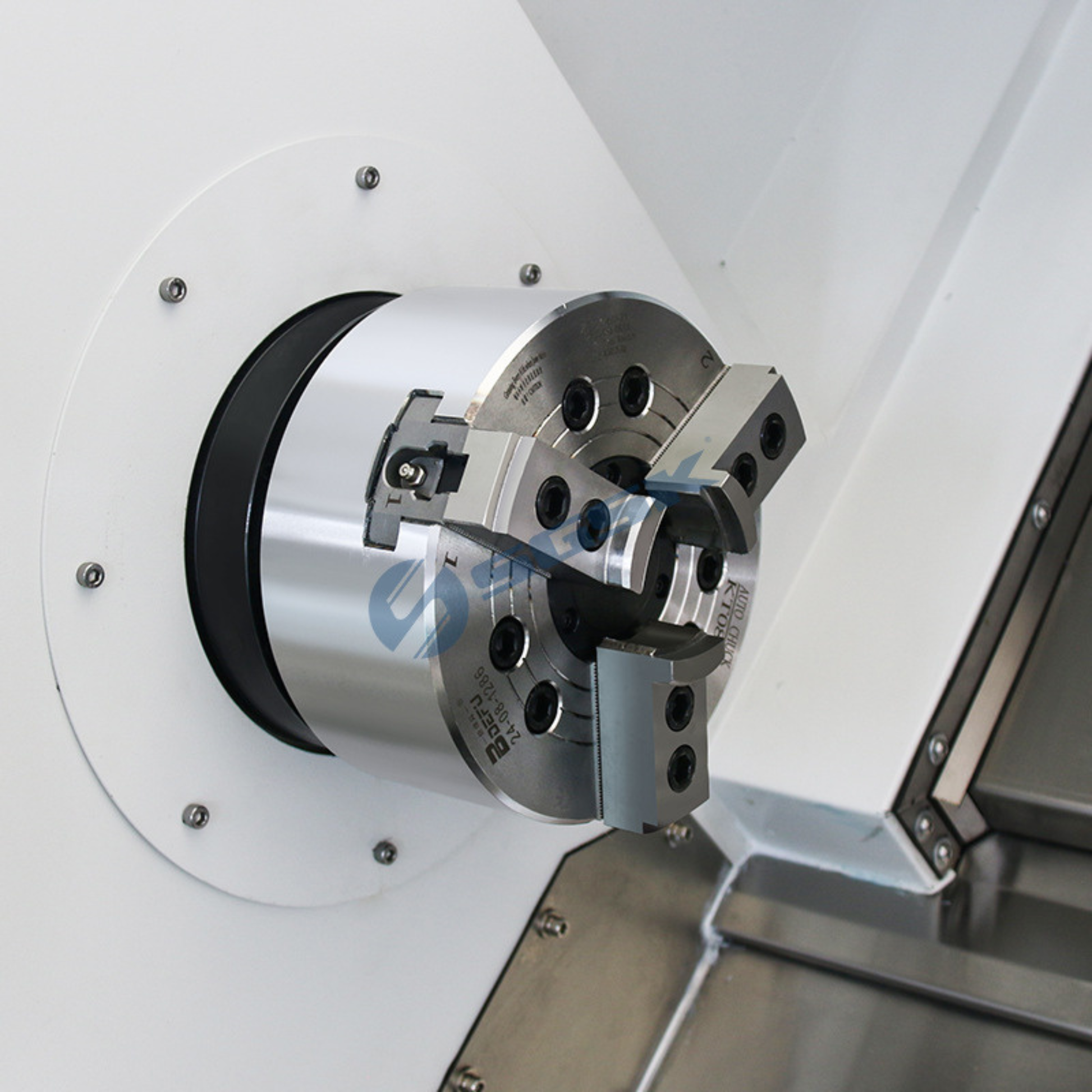

• Standard hollow hydraulic chuck

• Optional pneumatic chuck

• Hydraulic tailstock installed on hardened guideway

• Optional manual or hydraulic steady rest

CNC Control System (Optional Configurations)

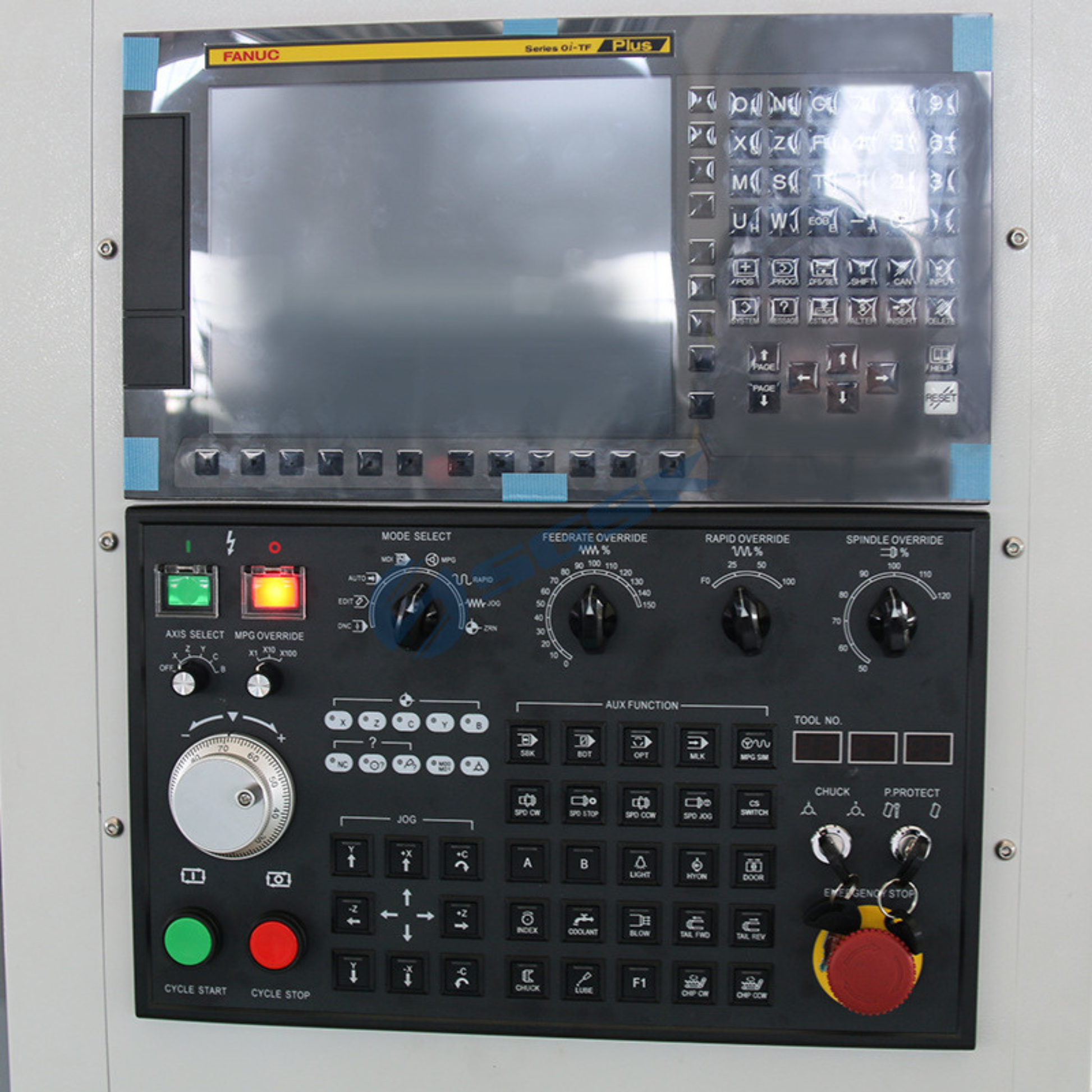

Available CNC systems:

• GSK

• Fanuc

• Siemens

• Mitsubishi

• KND

• SYNTEC

Features:

• Industrial-grade interface

• Real-time machining monitoring

• Programmable feed & spindle override

• Emergency stop & integrated safety controls

Motion System

• Precision ball screw system (Nanjing/Taiwan screw options)

• High-load linear guide rails

• High repeatability positioning accuracy

• Smooth axis interpolation

Hydraulic & Lubrication System

• Independent hydraulic system powering chuck & tailstock

• Automatic centralized lubrication system

• Stable oil circulation

• Designed for extended machine lifespan

Electrical System

• Schneider electrical components

• Industrial electrical cabinet air conditioning

• Stable electrical architecture

• Aviation quick plug system for easy connection

Chip Management & Automation Options

Optional configurations include:

• Chain type chip conveyor

• Screw type chip conveyor

• Automatic door system

• Parts catcher

• Servo feeder

• Oil bath feeder

• Oil mist collector

• Oil-water separator

• Workpiece measuring probe

• Tool setting probe

Testing & Quality Control

• Each machine tested with Renishaw laser interferometer

• 24-step quality inspection process

• CE, ISO, SGS certifications

• Full factory testing before shipment

Applications

• Automotive components

• Heavy mechanical parts

• Shaft machining

• Flange and pipe components

• Precision turning for industrial manufacturing

• Medium-to-large batch production

Industrial Advantages

• Excellent rigidity for heavy-duty cutting

• Efficient chip evacuation

• High stability under continuous operation

• Automation-ready configuration

• Reduced downtime and maintenance
