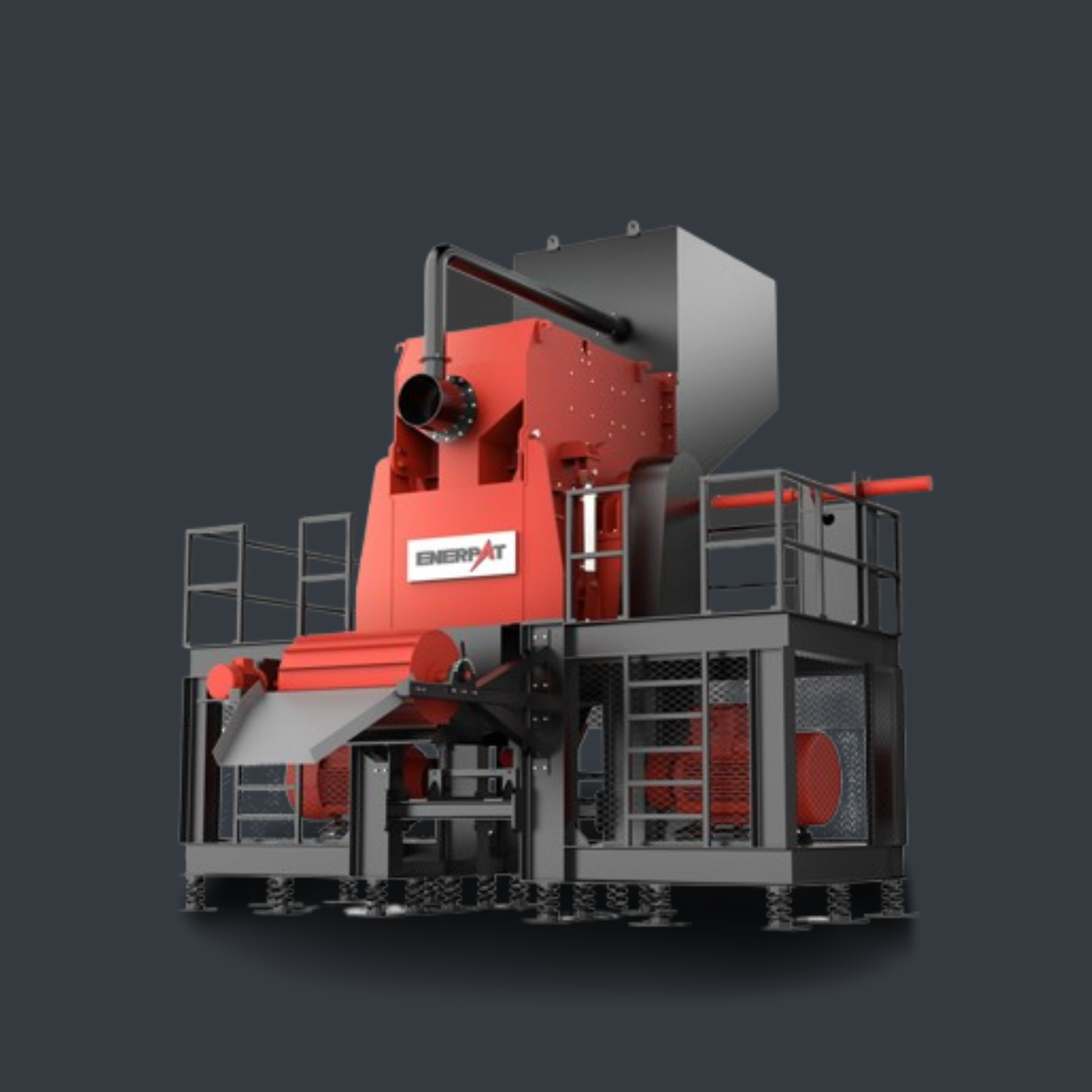

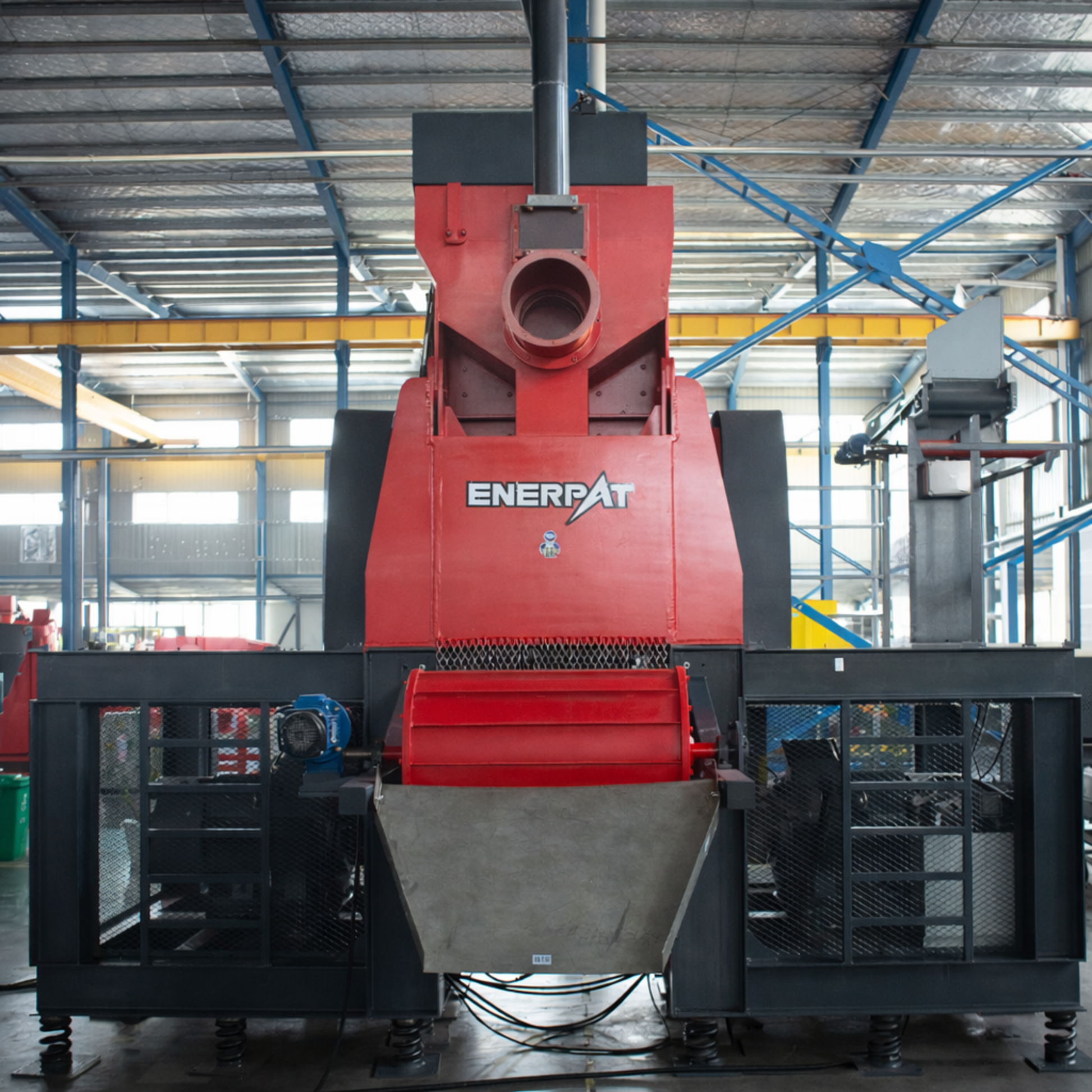

MSE-H1000 High-Power Vertical Hammer Crusher for Scrap Car Shell & Metal Recycling
Product Overview
The MSE-H1000 Vertical Hammer Crusher is a high-capacity industrial crushing system engineered for heavy metal recycling applications, including:
-
Scrap car body crushing
-
End-of-life vehicle (ELV) shell processing
-
Appliance scrap recycling
-
Aluminum and light metal recovery
-
Industrial metal waste reduction
Designed for high-impact crushing operations, the MSE-H1000 ensures controlled particle size reduction with stable performance under continuous industrial workloads.
Core Functionality
-
High-speed vertical hammer crushing system
-
Controlled material discharge size
-
Heavy-duty crushing chamber
-
Continuous feed and discharge operation
-
Efficient metal fragmentation and separation support
Suitable for high-volume scrap processing facilities.
Key Technical Specifications (MSE-H1000)
-
Main Motor Power: 220 kW
-
Feeding Opening Size: 1526 × 983 mm
-
Shaft Diameter: 185 mm
-
Rotor Diameter: 870 mm
-
Crushing Chamber Length: 1090 mm
-
Hammer Thickness: 65 mm
-
Rotor Speed: 480 rpm
-
Machine Dimensions: 5465 × 3930 × 4919 mm
-
Machine Weight: 23 tons
(Technical specifications subject to final configuration agreement.)
Structural & Mechanical Features
-
Integrated extra-thick steel crushing chamber
-
High-strength welded frame construction
-
Wear-resistant alloy hammer heads
-
360° rotating hammer impact system
-
Large-diameter precision cast pulleys
-
Heavy-duty transmission assembly
-
Siemens industrial motor configuration
-
Intelligent PLC electrical control system
-
CE-compliant safety design
-
Overload protection and emergency stop system
Engineered for durability under high-impact metal crushing operations.
Operational Advantages
✔ High-impact crushing efficiency
✔ Stable high-speed rotor operation
✔ Reduced material blockage
✔ Uniform output particle size
✔ Low vibration support base system
✔ Optimized power-to-output ratio
✔ Heavy-duty industrial reliability
✔ Designed for continuous operation
Application Materials
The MSE-H1000 is suitable for processing:
-
Scrap vehicle shells
-
Aluminum scrap
-
Metal castings
-
Oil filter housings
-
Household appliance scrap
-
Mixed light metal waste
Ideal for metal recycling plants and ELV processing centers.
Integration Capability
The system can be integrated with:
-
Scrap feeding conveyors
-
Magnetic separation systems
-
Eddy current separators
-
Dust collection systems
-
Post-crushing sorting lines
Suitable for complete metal recycling production lines.
Why Industrial Buyers Choose MSE-H1000
-
High crushing capacity
-
Robust heavy-duty structure
-
Reliable industrial motor system
-
Intelligent electrical control
-
Optimized for metal recovery efficiency
-
Designed for medium-to-large recycling facilities
