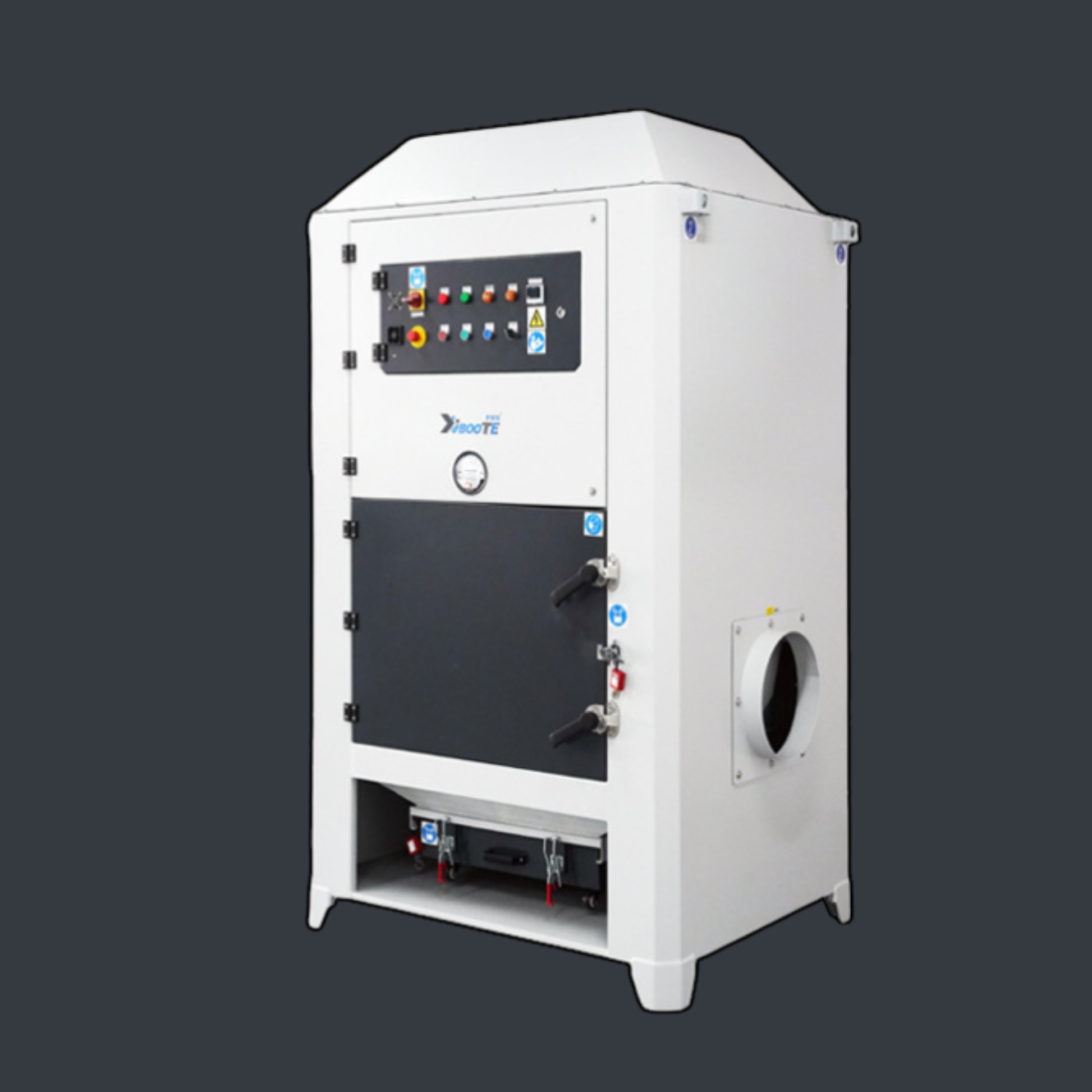

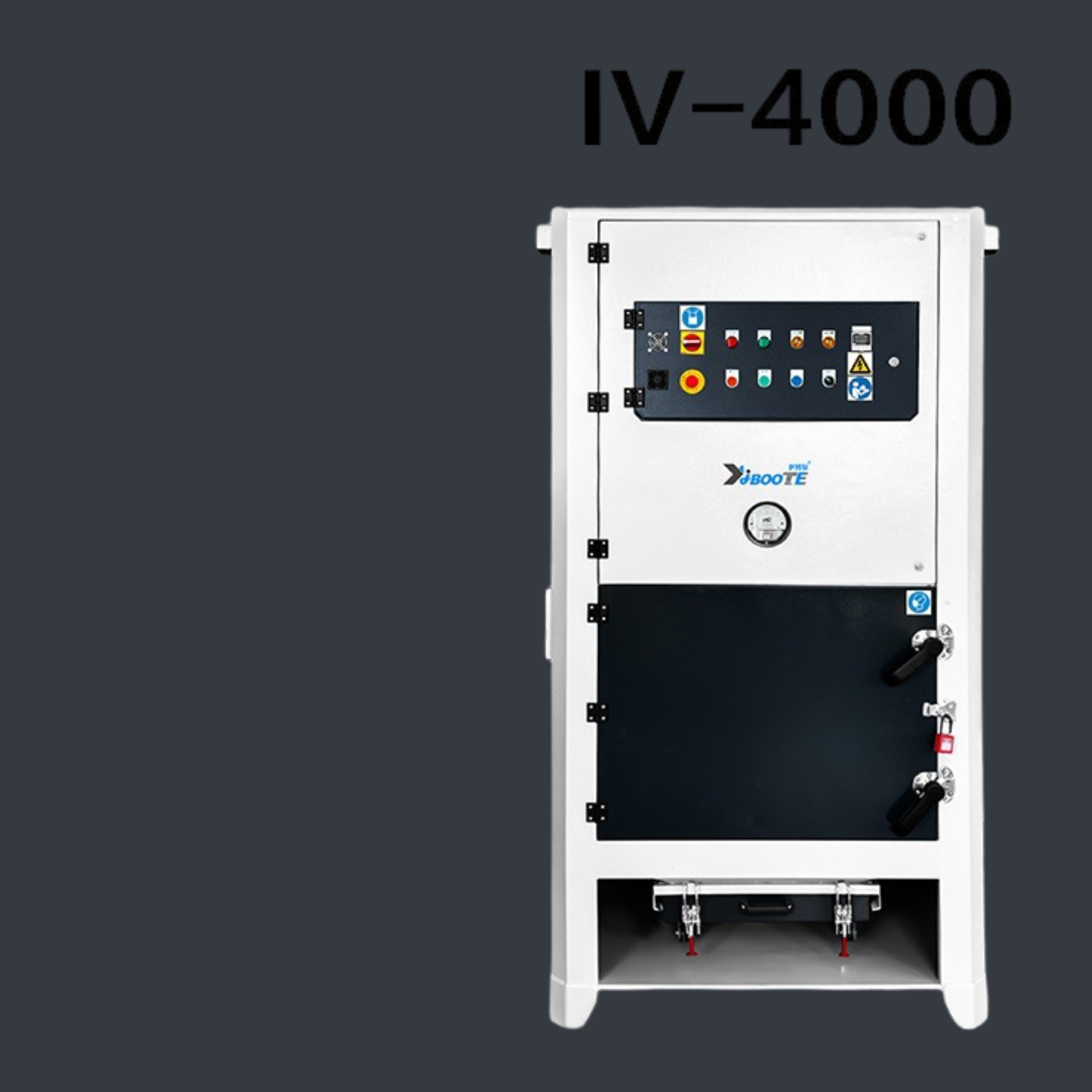

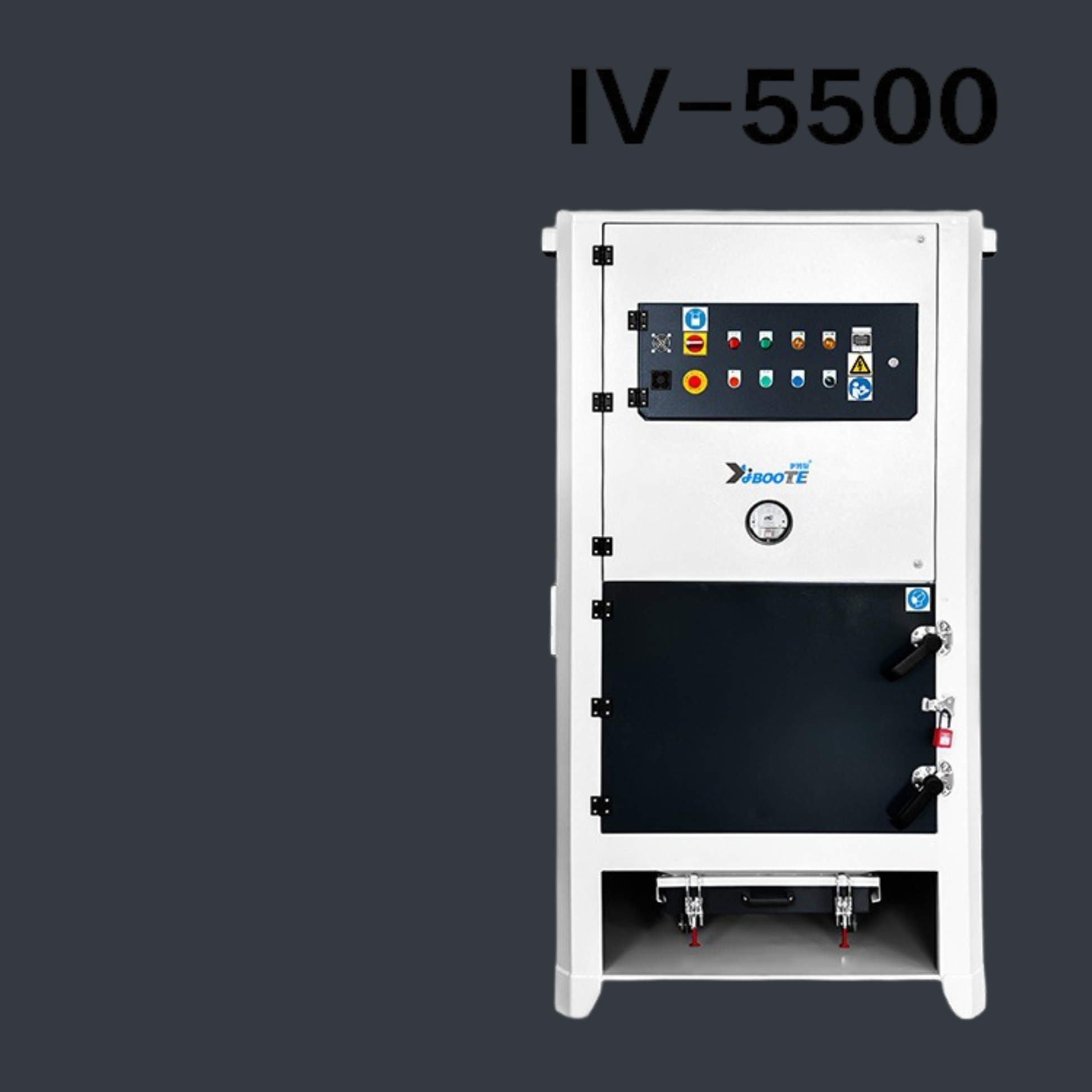

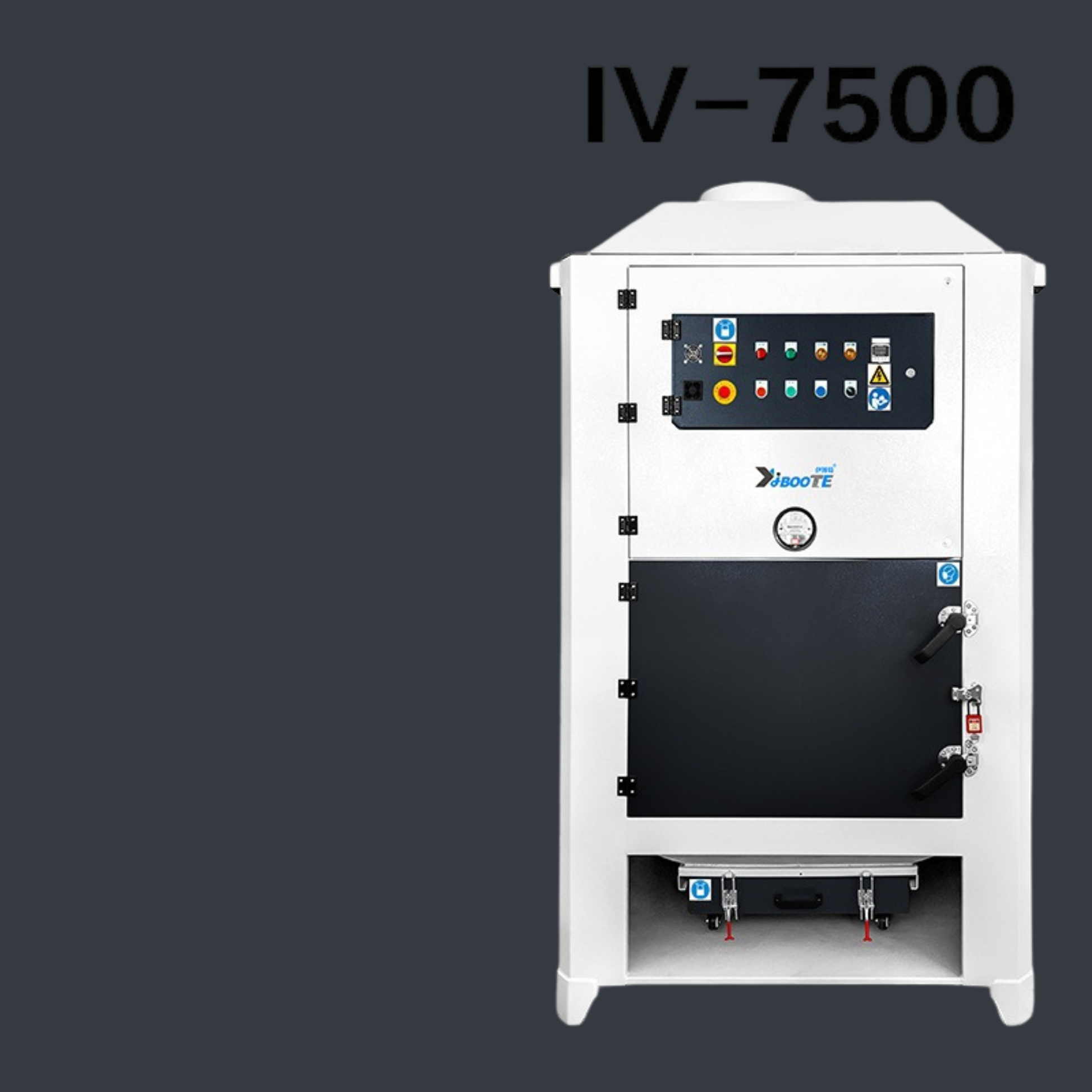

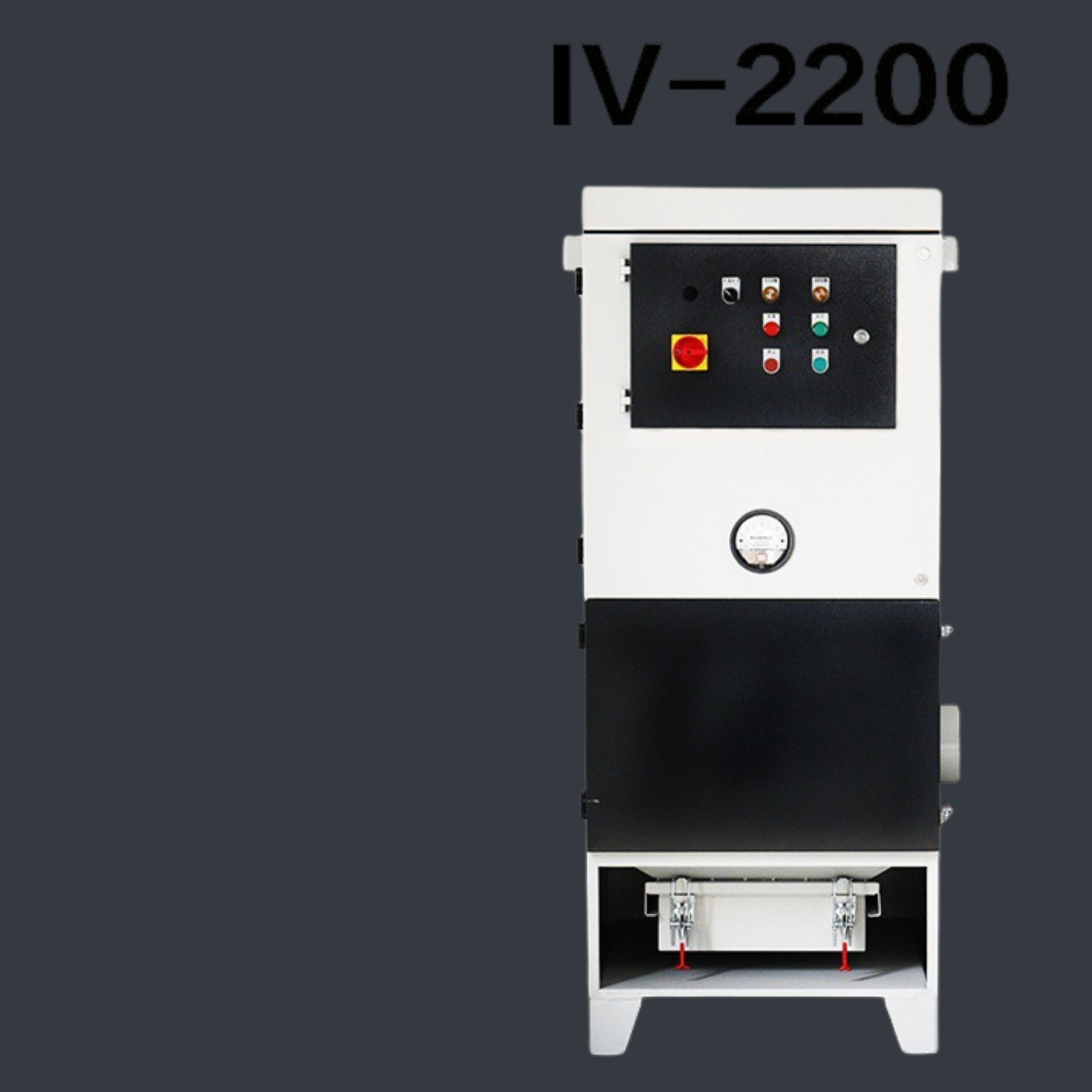

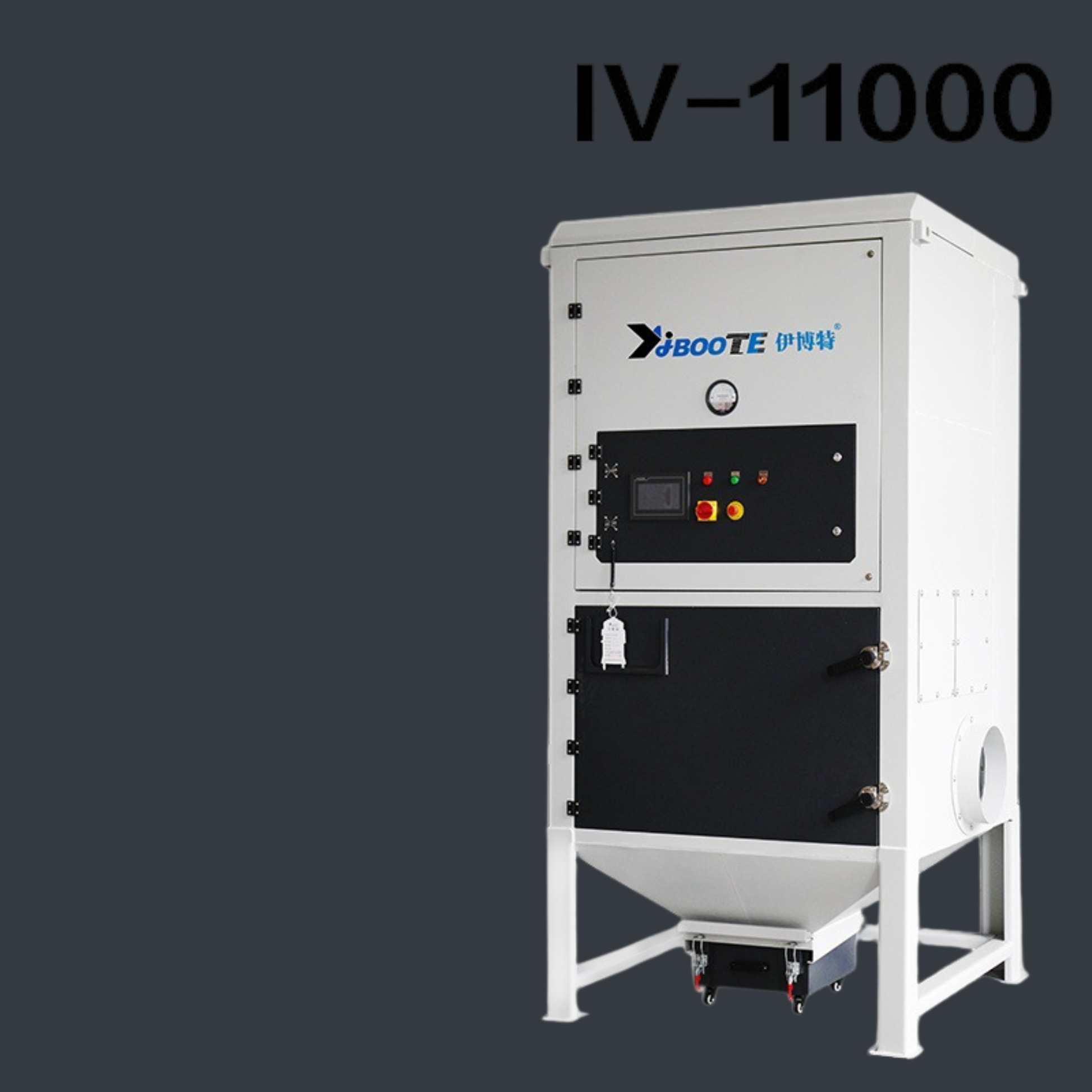

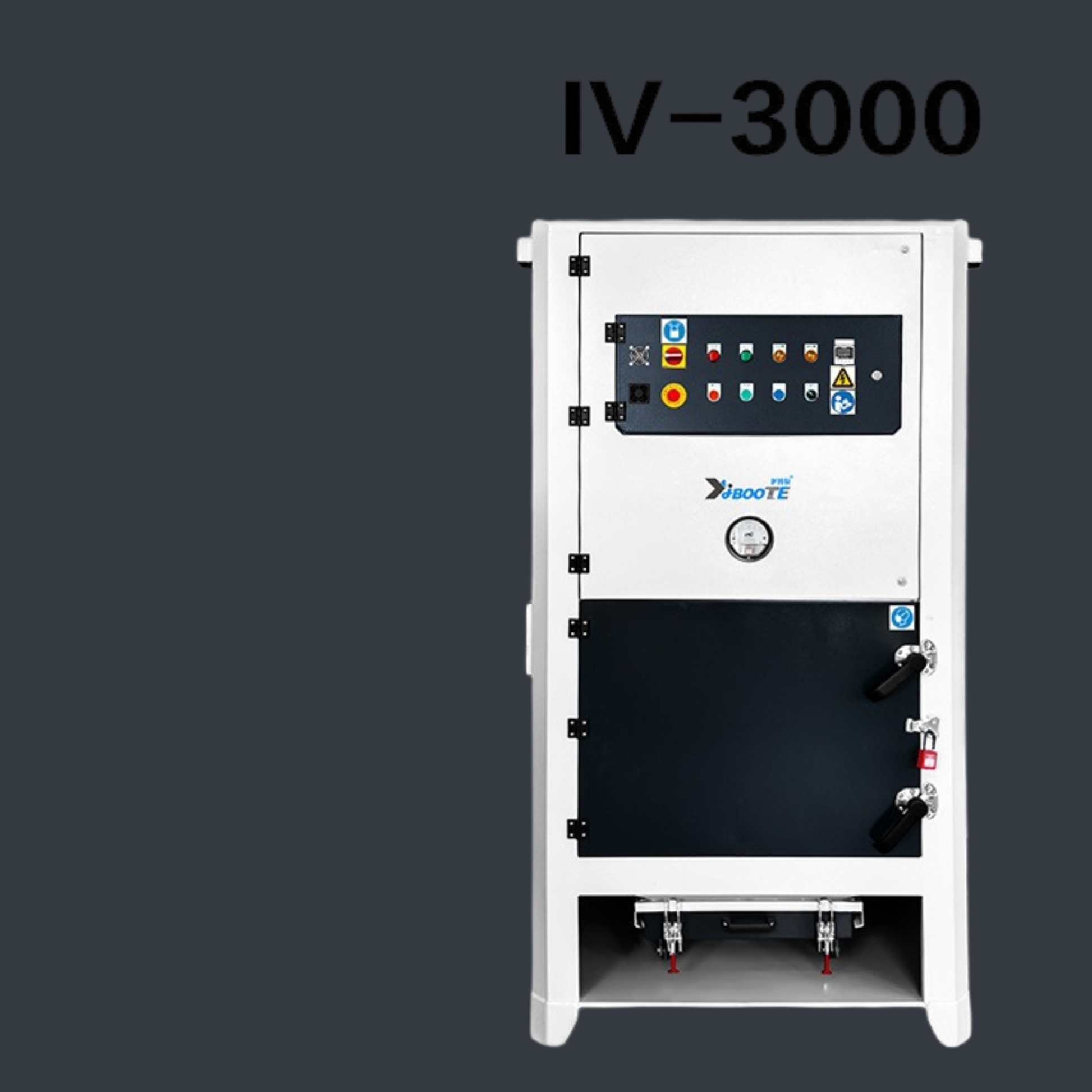

IV Series Industrial Pulse Dust Collector
380V High-Efficiency Industrial Dust Extraction System (2.2kW–15kW)
Product Overview
The IV Series Industrial Dust Collector is a high-efficiency pulse-jet filtration system designed for heavy-duty industrial dust extraction applications.
Engineered for laser cutting, welding, grinding, mixing, and material processing environments, the system ensures stable airflow, powerful suction, and ultra-fine filtration performance.
Available in multiple power configurations from 2.2kW to 15kW.
Key Features
• Industrial-grade pulse-jet automatic cleaning system
• High suction power for continuous-duty operation
• PTFE coated filter cartridges (model dependent)
• 0.5μm filtration precision (0.3μm for high-power models)
• Stable 380V industrial power supply
• Heavy-duty steel cabinet construction
• Integrated dust collection drawer or hopper system
• High airflow capacity for large workshops
• Low vibration and low noise operation
• Long service life filtration system
Technical Specifications (Depending on Model)
• Power Range: 2.2kW – 15kW
• Voltage: 380V
• Maximum Vacuum: 1500Pa – 2700Pa
• Airflow Capacity: 2600m³/h – 16000m³/h

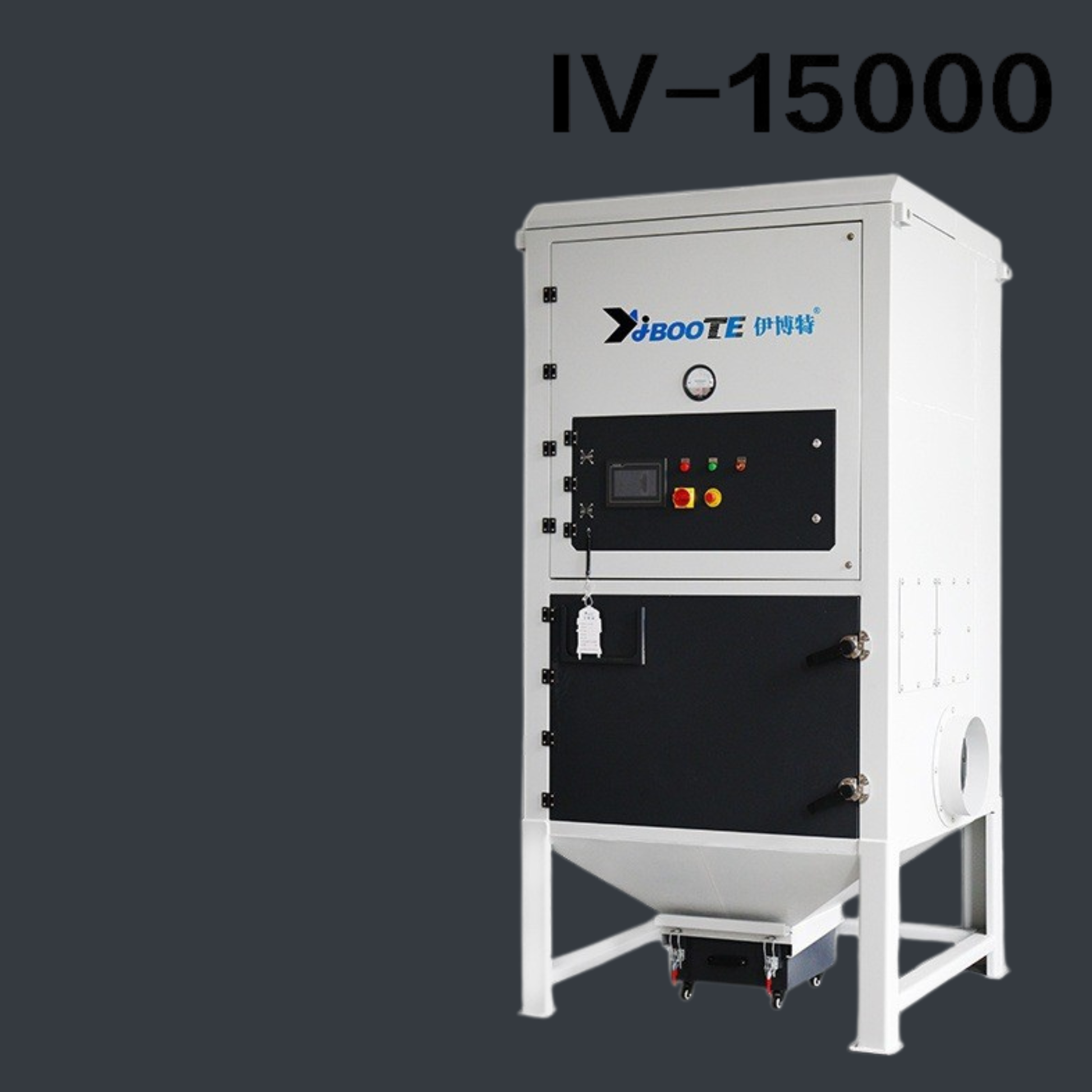

• Filtration Accuracy: 0.5μm (0.3μm for IV-15000)
• Automatic Pulse Cleaning System
• Industrial Control Panel with Emergency Stop
• Heavy-Duty Industrial Casters (select models)
Applications
Suitable for:
• Laser cutting dust extraction
• Robotic welding smoke removal
• Grinding and polishing dust collection
• Powder mixing processes
• Sandblasting dust removal
• CNC machining environments
• Metal fabrication workshops
• Industrial production lines
• Food and chemical powder processing
Performance Advantages
• High airflow and strong negative pressure
• Continuous industrial operation capability
• Automatic filter cleaning reduces maintenance
• Compact vertical footprint design
• Easy installation and operation
• High dust holding capacity
• Improved air quality in industrial environments
• Suitable for heavy-duty manufacturing facilities
Installation & Configuration
• 380V industrial power connection
• Bottom drawer dust discharge (standard models)
• Hopper discharge system (high-capacity models)
• Side air inlet configuration
• Industrial mobility wheels (select versions)
• Custom airflow and filter configuration available
Manufacturing & Quality Control
• Industrial steel housing
• Multi-stage quality inspection
• Stable mass production capability
• OEM manufacturing support
• Custom specification available upon request
