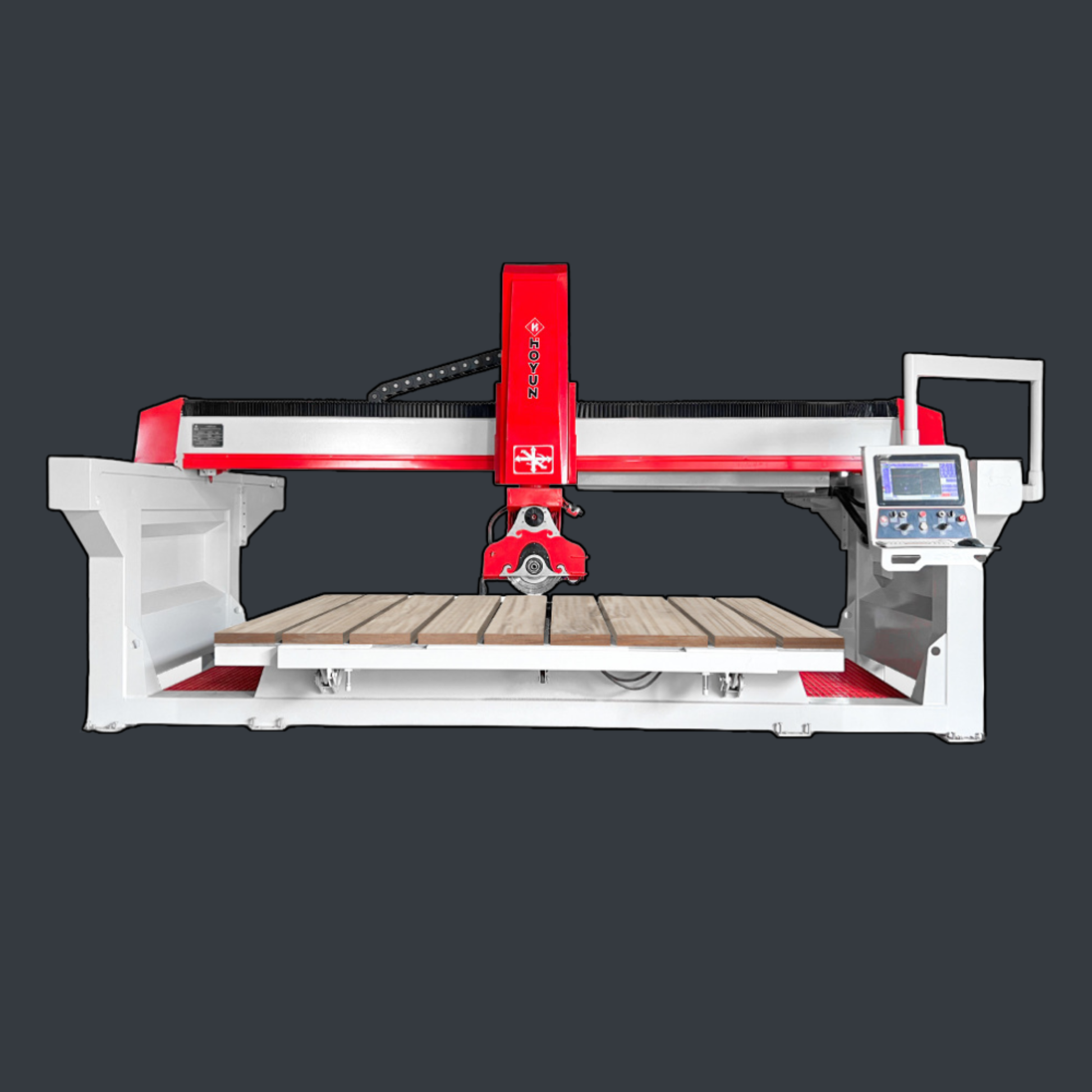

HYCNC 4-Axis CNC Bridge Saw

HYCNC 4-Axis CNC Bridge Saw

Automatic Marble, Granite & Quartz Cutting System

Product Overview

The HYCNC-4Axis CNC Bridge Saw is a fully automatic 4-axis stone cutting machine designed for high-precision processing of marble, granite, quartz, ceramic tiles and engineered stone slabs.

Engineered for professional stone workshops and industrial fabrication facilities, this bridge saw integrates CNC control, automatic positioning and multi-angle cutting capabilities in one robust system.

Core Functionality

• Automatic slab cutting

• Linear and cross cutting

• Mitre cutting (45°)

• Circular and shaped cutting

• CNC programmed contour processing

• Multi-axis controlled head movement

• High-precision bridge transmission system

Designed for continuous industrial operation with stable cutting accuracy.

Axis Configuration

4 Controlled Axes:

• X-Axis: Bridge longitudinal movement

• Y-Axis: Cutting head transverse movement

• Z-Axis: Vertical blade lifting

• C-Axis: Blade rotation (0°–360° positioning)

Provides flexible cutting geometry and precise edge finishing.

Machine Structure

• Heavy-duty steel bridge frame

• Reinforced gantry design

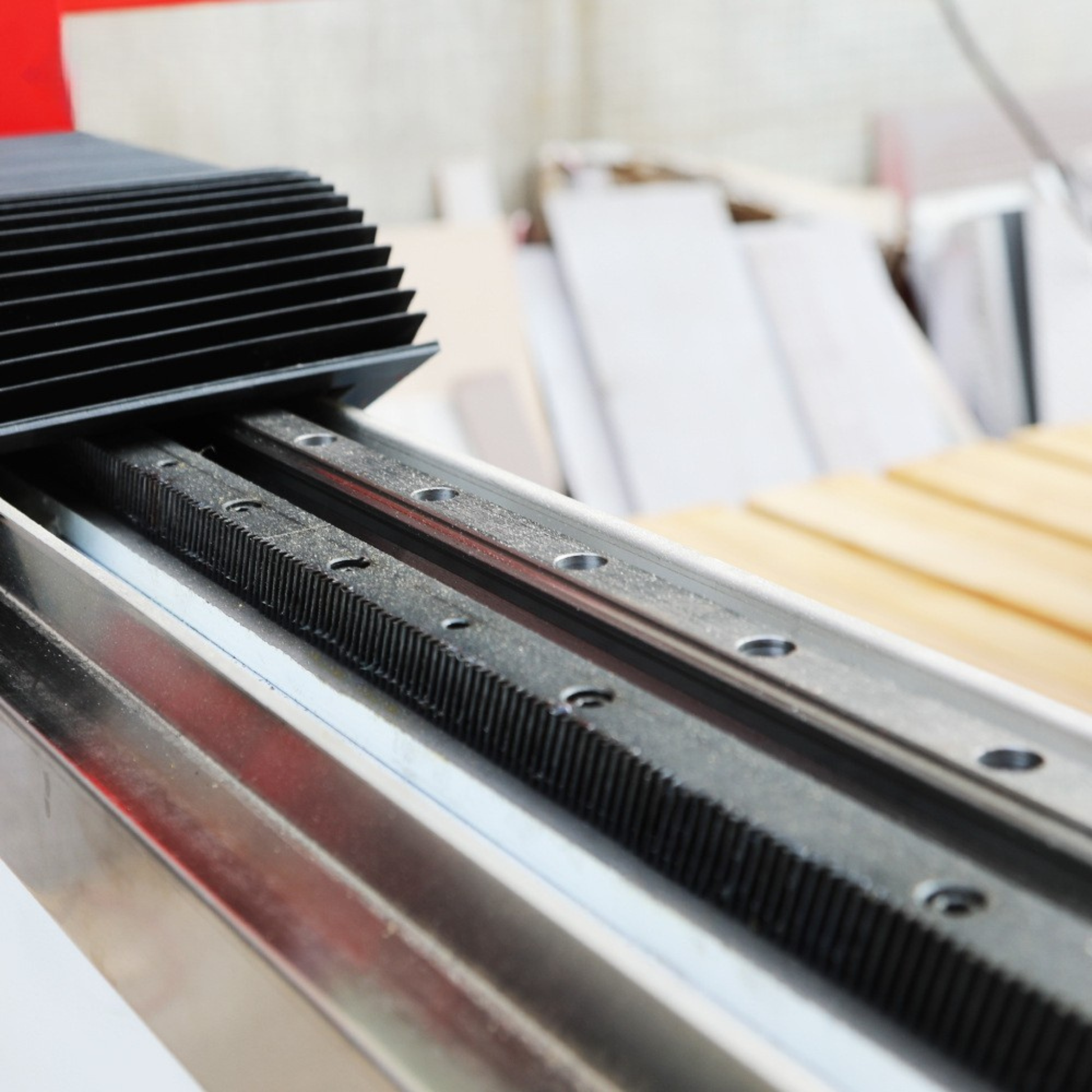

• Precision linear guide rails

• Rack and pinion transmission system

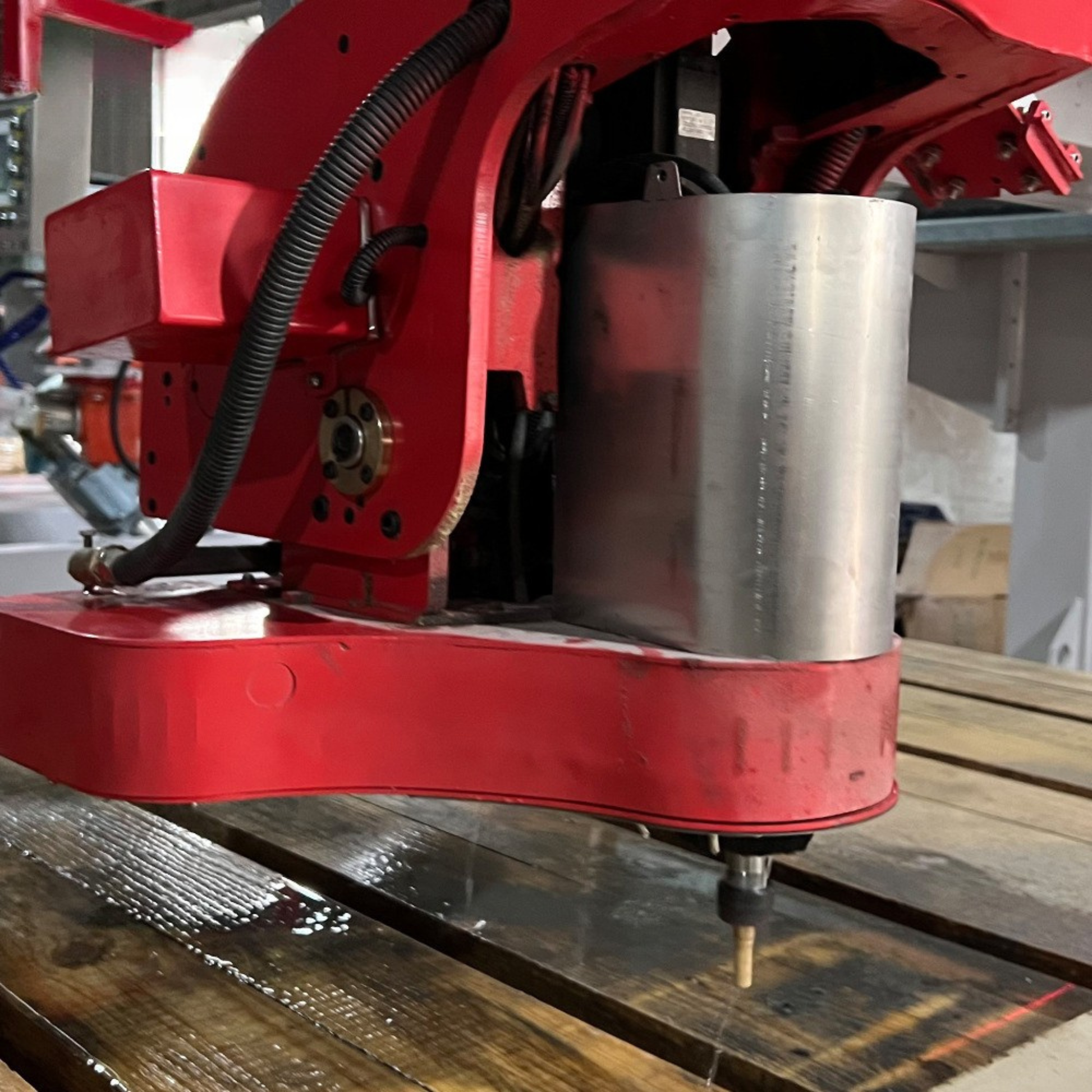

• High-rigidity cutting head assembly

• Industrial water cooling system

• Anti-corrosion structural components

Built for long-term durability in demanding stone processing environments.

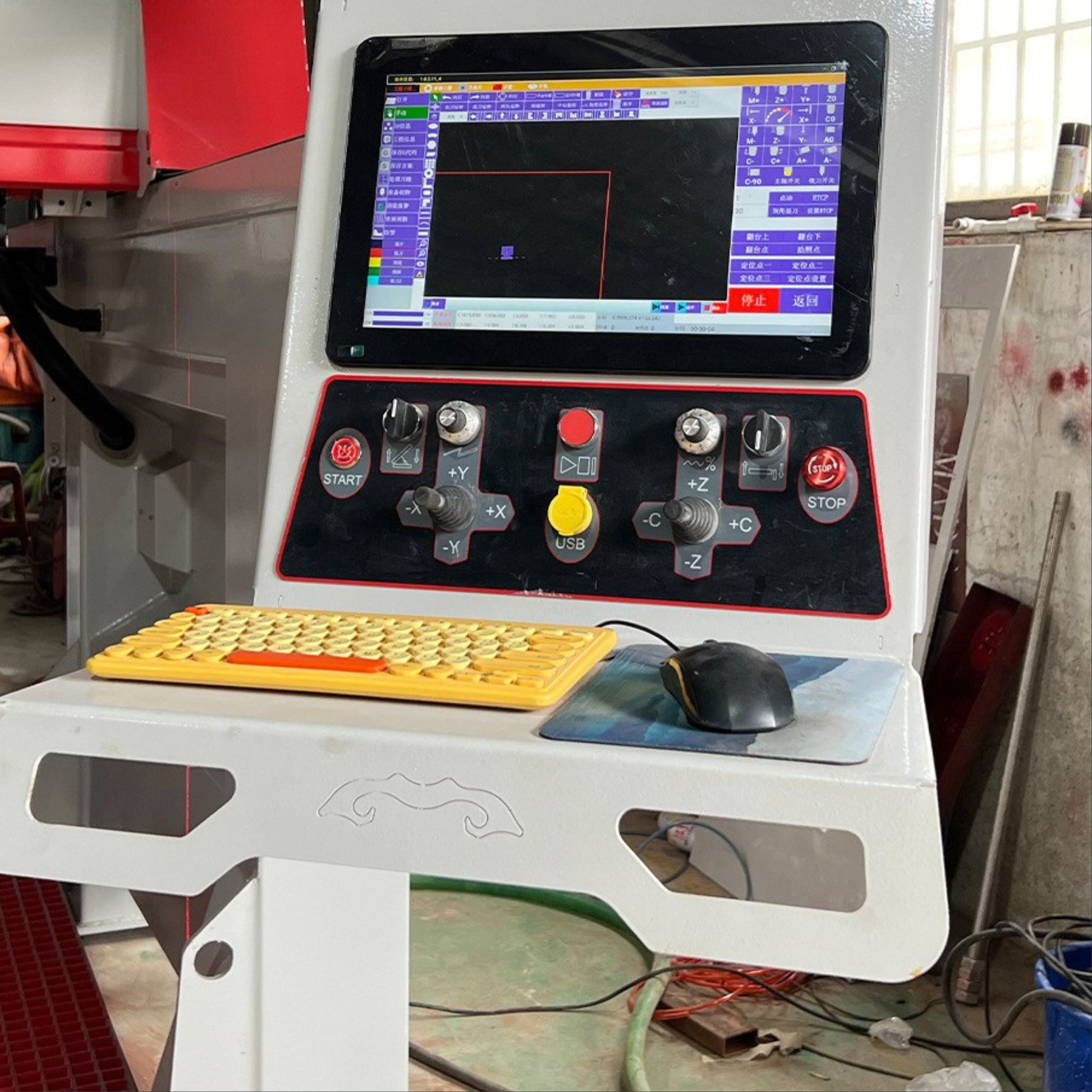

Control System

• Industrial CNC control panel

• Touchscreen interface

• USB program input

• Manual and automatic operation modes

• Real-time cutting path display

• Parameter customization

• Safety emergency stop system

User-friendly interface with industrial-grade reliability.

Technical Capabilities

• Suitable for large format slabs

• High cutting precision

• Stable blade rotation control

• Smooth transmission system

• Optimized vibration reduction

• Consistent cutting depth accuracy

• Adjustable cutting speed

(Custom technical specifications available upon request.)

Applicable Materials

• Marble

• Granite

• Quartz stone

• Artificial stone

• Ceramic slabs

• Porcelain tiles

• Engineered stone panels

Operational Advantages

✔ High precision CNC automation
✔ Reduced labor dependency
✔ Multi-angle cutting flexibility
✔ Consistent edge finishing quality
✔ Suitable for medium to high production volumes
✔ Stable industrial performance
✔ Easy maintenance structure
✔ Compatible with fabrication workshop layouts

Typical Applications

• Kitchen countertop fabrication

• Stone slab processing

• Architectural stone cutting

• Tile processing workshops

• Monument and decorative stone production

• Industrial stone manufacturing plants

Why Industrial Buyers Choose This Model

• Reliable 4-axis CNC control

• Balanced cost-performance ratio

• Suitable for professional fabrication shops

• Industrial-grade mechanical components

• Easy integration into existing production lines

• Customizable configuration options
