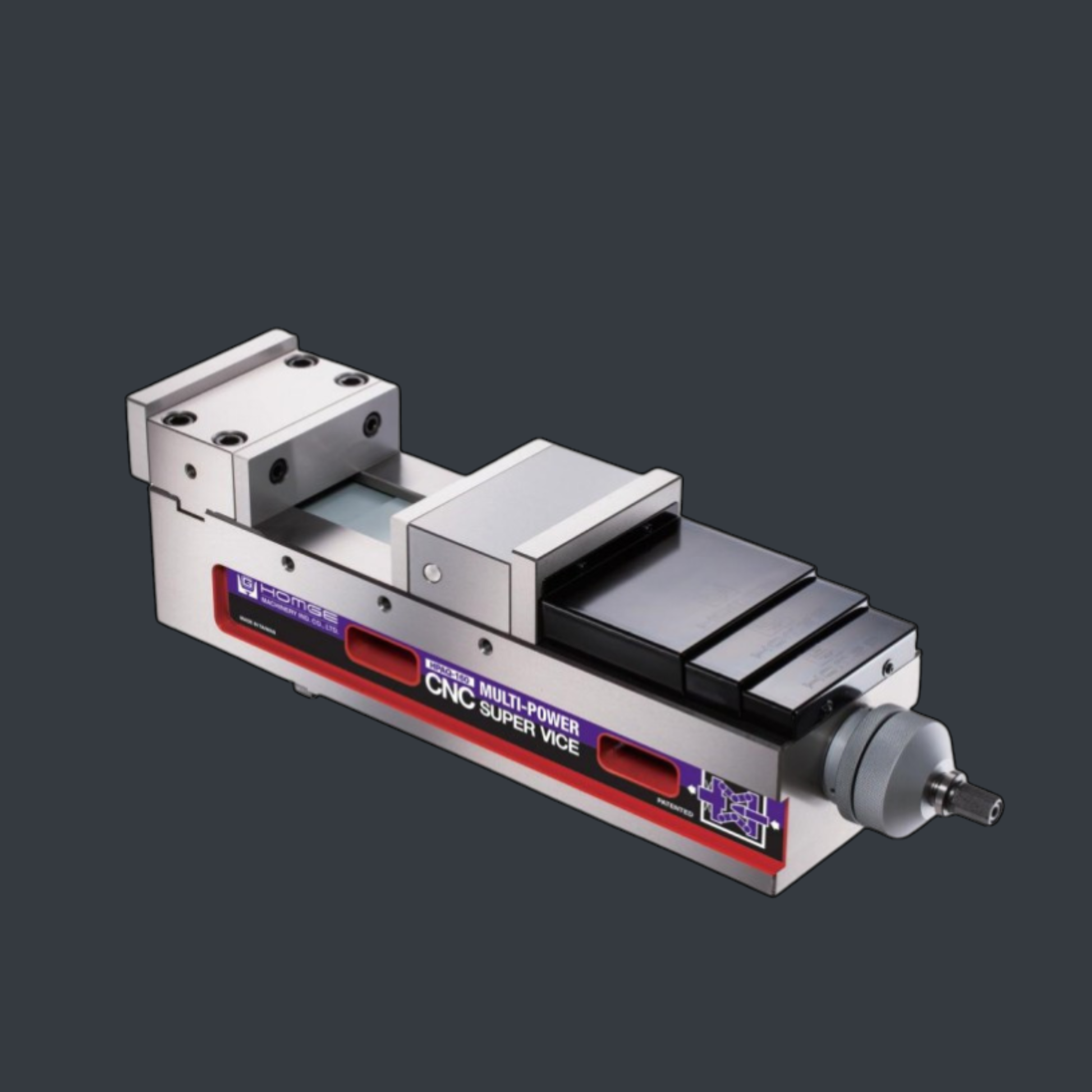

HPAQ Series CNC Super Power Vise
High-Precision Heavy-Duty Milling Machine Vice (160 / 200 / 250 / 160L / 200L)
Product Overview
The HPAQ Series CNC Super Power Vise is a high-precision, heavy-duty milling machine vice engineered for demanding CNC machining operations.
Designed with a high-strength casting body and reinforced clamping structure, this vise delivers superior clamping force, stability, and machining accuracy for industrial applications.
Suitable for vertical and horizontal machining centers, large milling machines, and heavy-duty precision operations.
Available Models
• HPAQ-160
• HPAQ-200
• HPAQ-250
• HPAQ-160L (Extended travel)
• HPAQ-200L (Extended travel)
Each model offers different jaw width and clamping capacity to meet various machining requirements.
Key Construction Features
• High-grade FCD60 ductile cast iron body
• Heat-treated components (HRC 50° hardness)
• Reinforced clamping mechanism
• Precision-ground guide surfaces
• High rigidity structural design
• Anti-lift jaw design
• Large clamping stroke
• High stability under heavy cutting loads
Clamping Performance
• Maximum clamping force up to 8000 kg
• Multi-power clamping structure
• Stable workpiece positioning
• Reduced vibration during machining
• High repeatability accuracy
Precision & Stability
• High parallelism and squareness
• CNC-machined body for accuracy
• Smooth jaw movement
• Minimal deformation under load
• Optimized for high-speed milling
Applications
• CNC machining centers
• Vertical milling machines
• Heavy-duty metal cutting
• Tool & die manufacturing
• Mold making
• Precision mechanical parts production
• Steel and alloy machining
• Large workpiece clamping
Optional Jaw Types
• Cross-serrated jaw
• V-type jaw
• Step jaw
• Composite jaw
• Custom jaws available
Performance Advantages
• Heavy-duty industrial construction
• High clamping rigidity
• Suitable for large machining centers
• Long service life
• Excellent dimensional stability
• Designed for continuous production use
Industrial Benefits
• Improved machining accuracy
• Reduced setup time
• Reliable workpiece holding
• Suitable for high-torque cutting operations
• Designed for industrial workshop environments
Manufacturing & Quality
• Precision CNC machining
• Heat-treated critical components
• Strict quality inspection
• Industrial-grade casting material
• OEM support available
