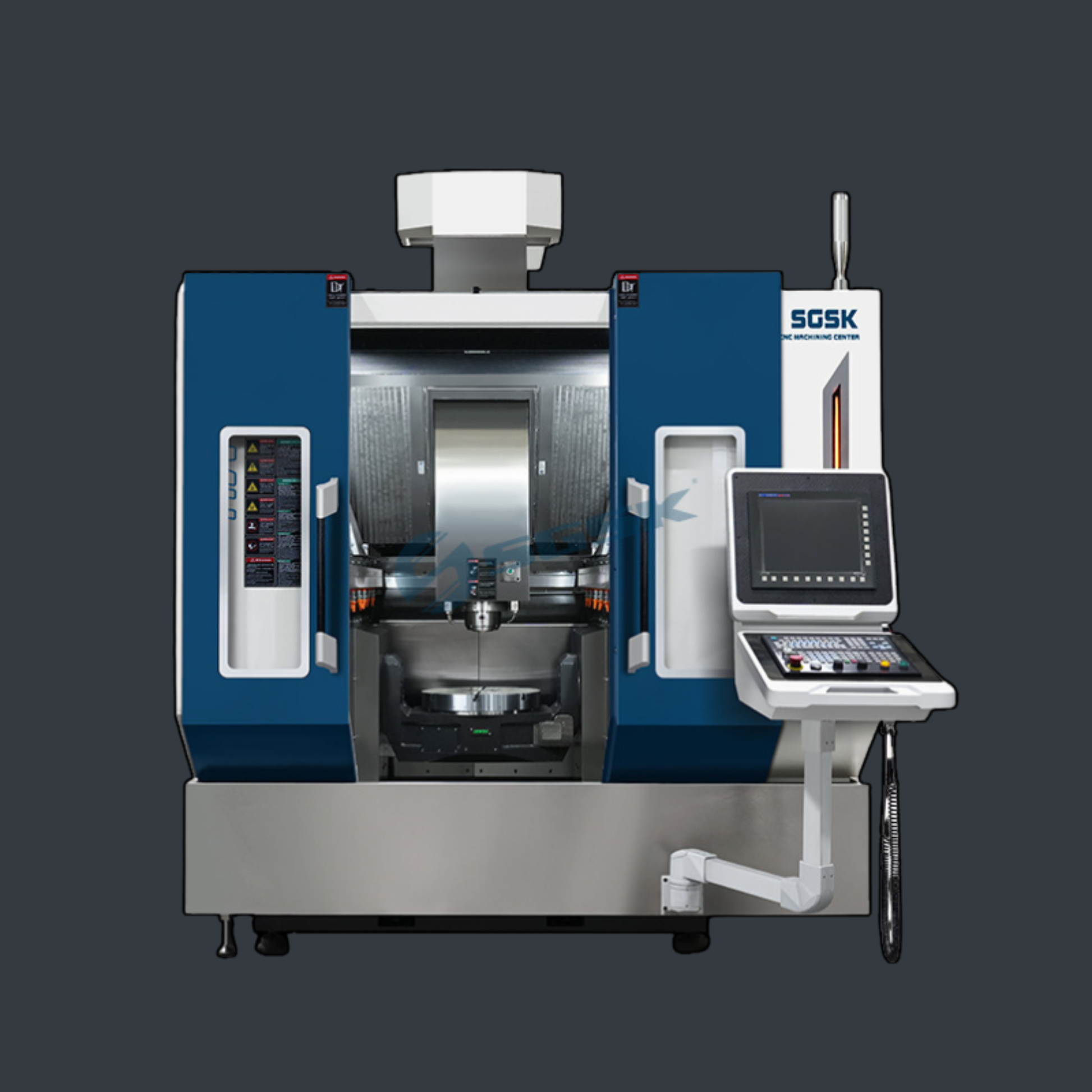

AMU650 5-Axis CNC Machining Center

AMU650 5-Axis CNC Machining Center

Vertical High-Precision 650mm CNC Milling Center

Overview

The AMU650 5-Axis CNC Machining Center is a high-precision vertical machining center engineered for complex multi-surface machining, aerospace components, mold manufacturing, precision parts, and advanced industrial applications.

Designed with a rigid cast iron structure, high-speed spindle system and integrated 5-axis control, the AMU650 ensures superior accuracy, stability and production efficiency.

Structural & Mechanical Features

• Heavy-duty Meehanite cast iron base for vibration absorption and structural stability

• Reinforced machine frame for high rigidity during simultaneous 5-axis operations

• Precision linear guideways (high load capacity, low friction)

• High-precision ball screws with pre-tension system

• Fully enclosed working chamber for safety and chip control

• Thermal deformation control design for improved dimensional stability

5-Axis Machining Capability

• Simultaneous 5-axis interpolation (X / Y / Z + A / C axis)

• Rotary table Ø650 mm (high rigidity & positioning accuracy)

• Ideal for complex geometries and multi-angle machining

• Reduced setup time and higher machining efficiency

• Single-clamp processing for improved precision

Spindle System

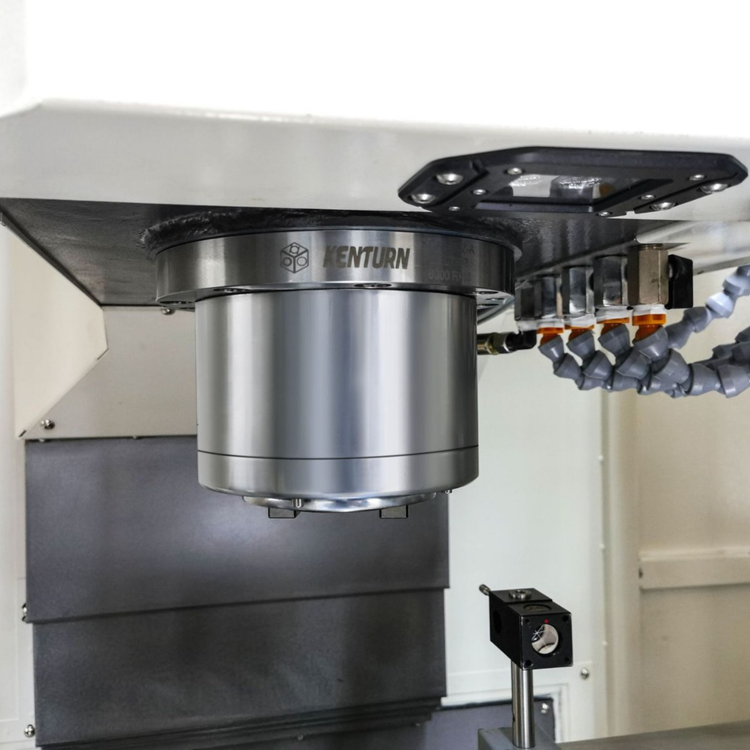

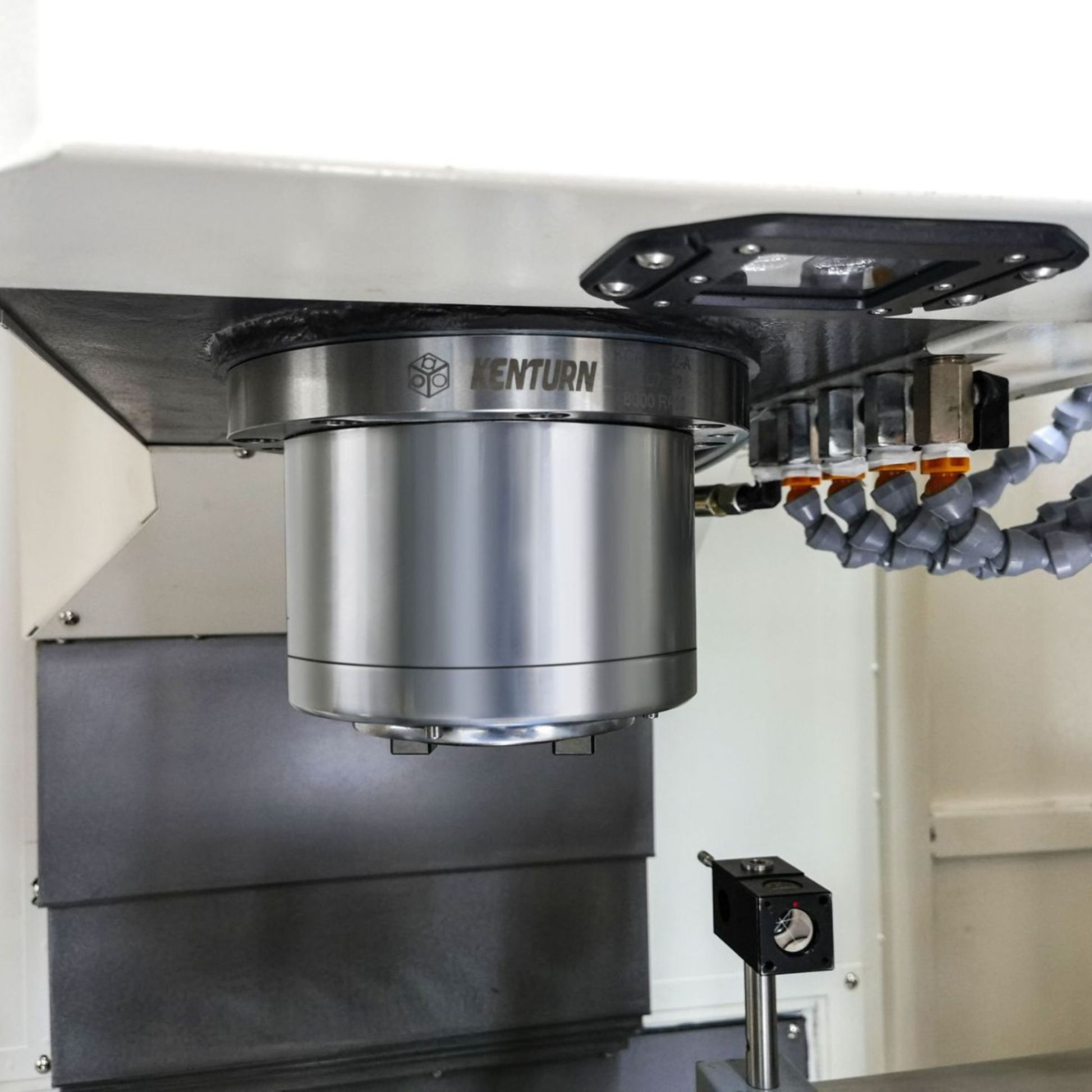

• High-speed precision spindle

• Stable performance at high RPM

• Optimized cooling system

• Suitable for aluminum, steel, titanium and composite materials

• Precision taper interface for improved tool stability

Tool Management

• Automatic Tool Changer (ATC)

• High-capacity tool magazine (optional configurations)

• Fast tool change time

• Reliable automatic clamping system

Control System

• Advanced CNC control interface

• Industrial touch panel control console

• Real-time monitoring of machining parameters

• User-friendly programming interface

• Emergency stop and full safety integration

Linear Motion & Accuracy

• High precision linear guide rails

• Preloaded ball screw drive system

• High repeatability positioning accuracy

• Stable long-term performance

Cooling & Chip Management

• Integrated coolant system

• Multiple coolant nozzles

• Efficient chip evacuation design

• Fully enclosed splash guard system

Applications

• Aerospace components

• Automotive parts

• Mold & die manufacturing

• Precision mechanical components

• Medical equipment parts

• High-complexity industrial components

Certifications & Compliance

• CE Certification

• ISO Compliance

• International industrial safety standards

Industrial Advantages

• Reduced machining cycles

• Increased production efficiency

• High structural rigidity

• Long operational lifespan

• Ideal for high-precision industrial manufacturing
